  9. Infrared Thermometer, Single Dot Laser Sighting Fixed 0.95, -40 Degrees to 1076 Degrees F

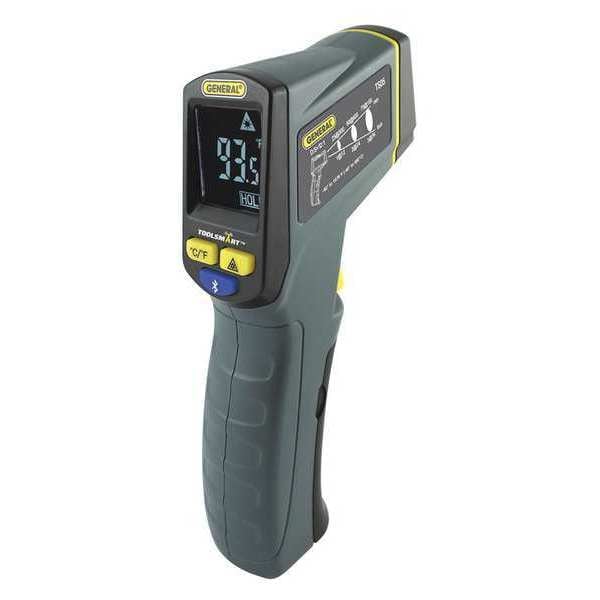

General Tools Infrared Thermometer, Single Dot Laser Sighting Fixed 0.95, -40 Degrees to 1076 Degrees F TS05 - main

Infrared Thermometer, Single Dot Laser Sighting Fixed 0.95, -40 Degrees to 1076 Degrees F

  • Mfr # TS05

  • Zoro # G7467321

product price: $62.69
/ea

Key Features

Focus Spot Size and Distance - Infrared
1 in @ 12 in
Temp. Range (F) - Infrared
-40 Degrees to 1076 Degrees
Emissivity
Fixed 0.95
Temp. Accuracy (F) - Infrared
+/-2.0% of Reading or +/-3.0 Degrees Whichever is Greater above 32.0 Degrees , +/-2.0% of Reading or +/-5.0 Degrees Whichever is Greater below 32.0 Degrees
Temp. Accuracy (C) - Infrared
+/-2.0% of Reading or +/-2.0 Degrees Whichever is Greater Above 0.0 Degrees , +/-2.0% of Reading or +/-3.0 Degrees Whichever is Greater Below 0.0 Degrees
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
TS05
Zoro #
G7467321
UPC #
681035017869
Country of Origin
China

Dimensions

Focus Spot Size and Distance - Infrared
1 in @ 12 in
Manufacturers Warranty Length
1 yr
Focus Spot Size and Distance
1" @ 12"
Manufacturer Warranty Length
1 yr
Battery Size
9V

Details

Item
Infrared Thermometer
Temp. Range (F) - Infrared
-40 Degrees to 1076 Degrees
Emissivity
Fixed 0.95
Temp. Accuracy (F) - Infrared
+/-2.0% of Reading or +/-3.0 Degrees Whichever is Greater above 32.0 Degrees , +/-2.0% of Reading or +/-5.0 Degrees Whichever is Greater below 32.0 Degrees
Temp. Accuracy (C) - Infrared
+/-2.0% of Reading or +/-2.0 Degrees Whichever is Greater Above 0.0 Degrees , +/-2.0% of Reading or +/-3.0 Degrees Whichever is Greater Below 0.0 Degrees
Laser Sighting
Single Dot
Calibration Certificate Included
No
Data Logging - Instrument
No
Display - IR Camera
Backlit LCD
Memory - Instrument
No
Data Hold
Yes
Display
Backlit LCD
Memory
No
Laser Sighting - Infrared
Single Dot
Data Logging
No
Item - Infrared Thermometer
Infrared Thermometer
Response Time
500 msec
Spectral Response - Infrared
8.0 to 14.0um
Temp. Range (C) - Infrared
-40 Degrees to 580 Degrees
Operating Temp. Range
32 Degrees to 122 Degrees F
Special Features
Provides Surface Temperature Readings In Hard to Reach Places, Safely Determine Temperature Readings From A Distance, Can Be Use with A Phone As A Second Screen for Easier Visibility, Connects Wirelessly to iPhone and Android Phones with Application
Temp. Range (C)
-40 Degrees to 580 Degrees
Spectral Response
8.0 to 14 uM
Accuracy
+/-2.0%
Battery Type
9V
Temp. Range (F)
-40 Degrees to 1076 Degrees F
Alarm Indication
High/Low
Repeatability
+/-1% of Reading
Temperature Alarm - Thermometer
No
Resolution
0.1 Degrees F/C
Includes
Battery
Trigger
Yes
Alarm
High/Low
Calibration Certificate
No
Environmental Applications - Air Conditioners and Heat Pumps
Non-Medical
Auto Power Off
Yes
Features
Laser Class/Power/Wavelength: Class 3r Less Than3mw/655nm
Accuracy Degrees C
+/-2.0% of Reading or +/-2.0 Degrees Whichever is Greater (Above 0 Degrees ); +/-2.0% of Reading or +/-3.0 Degrees Whichever is Greater (Below 0 Degrees )
Maximum Temperature Measured Degrees C
580 Degrees C
Maximum Operating Temperature Degrees F
122 Degrees F
Accuracy Degrees F
+/-2.0% of Reading or +/-3.0 Degrees Whichever is Greater (Above 32.0 Degrees ); +/-2.0% of Reading or +/-5.0 Degrees Whichever is Greater (Below 32.0 Degrees )
Resolution Degrees F
1 Degrees F
Maximum Temperature Measured Degrees F
1,076 Degrees F
Body Style
Compact
Battery Voltage
9V
Digital Display Screen Type
LCD with Backlight
Laser Sighting Type
Single Dot
Minimum Operating Temperature Degrees F
32 Degrees F
Minimum Temperature Measured Degrees F
-40 Degrees F
Emissivity Adjustability
Fixed
Temperature Alerts
High Temperature, Low Temperature
Distance To Spot Ratio
12:1
Number of Batteries Required
1
Batteries Included
Yes
Calibration Certificate Type
Not Certified
Alert Type
Sound
Resolution Degrees C
1 Degrees C
Maximum Emissivity Setting
0.95
Interface
Wireless
Minimum Temperature Measured Degrees C
-40 Degrees C

Description

Infrared Thermometer, Laser Sighting Type Single Dot, Emissivity Adjustability Fixed, Distance To Spot Ratio 12:1, Alert Type Sound, Maximum Emissivity Setting 0.95, Minimum Temperature Measured Degrees F -40 Degrees F, Maximum Temperature Measured Degrees F 1,076 Degrees F, Minimum Operating Temperature Degrees F 32 Degrees F, Maximum Operating Temperature Degrees F 122 Degrees F, Body Style Compact, Interface Wireless, Digital Display Screen Type LCD with Backlight
