  11. Invertible Fork Material Lift, Load Cap. 500 lb.
Shop All Equipment Lifts
Genie

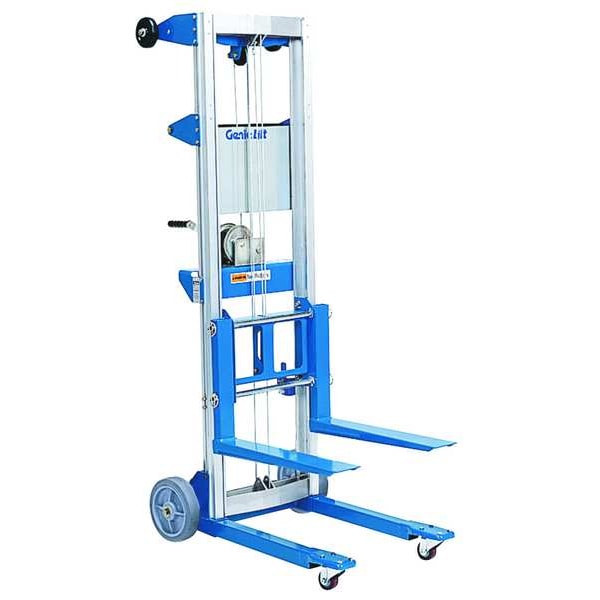

Invertible Fork Material Lift, Load Cap. 500 lb.

product price: $1,605.99
/ea
Item requires special delivery charges. A $100.00 per item surcharge will be applied.
Free 30-Day Returns

Key Features

  • Overall Height 67 1/2 in
  • Overall Length 34 3/4 in
  • Overall Width 27 in
  • Color Blue
  • Load Capacity 500 lb
See all product information

Product Information

Dimensions

Overall Height 67 1/2 in
Overall Length 34 3/4 in
Overall Width 27 in
Front Wheel Dia. 2 in
Lifting Height Max. 71 in
Fork Length 22 1/2 in
Front Caster Dia. 2 in
Lifting Height Forks Down 49 1/2 in
Rear Wheel Dia. 8 in
Lifting Height Min. 3 1/2 in
Fork Width 3 in
Min. Height Forks Down 3-1/2"
Manufacturers Warranty Length 1 yr
Lifting Height Forks Up 71"
Maximum Lifting Height 5 ft 11 in
Axle-Mounted Wheel Dia. 8 in
Caster Wheel Width 1 1/2 in
Width Across Forks 27 in
Handle Height 37 in
Lifting Height Range 3 1/2 in to 5 ft 11 in
Minimum Lifting Height 3 1/2 in
Width Between Forks 25 1/2 in
Overall Height with Forks Raised 71 in
Base Outside Width 24 3/4 in
Caster Wheel Dia. 2 in
Overall Height with Forks Lowered 49 1/2 in
Overall LxWxH 34 3/4 in x 27 in x 49 1/2 in

Details

Color Blue
Load Capacity 500 lb
Item Manual Fork-Over Stacker
Assembled Yes
Lift Mechanism Chain/Cable
Frame Material Aluminum
Caster Wheel Type Swivel
Lift Control Hand Winch
Invertible Forks Yes
Base Legs Outside Dim. 24-3/4 in
Lift Mobility Manual Lift, Manual Push
Lift Base Style Fixed Straddle
Includes Hand Winch for Inverting Forks
Base Legs Inside Dim. 18 in
Load Center 12 in
Features Can Be Used as A Hand Truck, Forklift or Dolly, Loads in a Pickup Truck for Easy Transport, Telescoping Aluminum Frame
Weight 110 lb
Operation Manual
Caster/Wheel Configuration (2) Swivel with Brake, (2) Axle-Mounted
Frame Type Flat Back
Number of Batteries 0
Caster Brake Type Side Pedal Brake
Non-Marking Casters/Wheels Yes
For Pallet Type Open
Caster Wheel/Tread Material Rubber
Non-Marking Axle-Mounted Wheels Yes
Base Material Aluminum
Caster Frame Material Stainless Steel
Base Style Fixed Forkover
For Surface Type Concrete
Frame Finish Powder Coated
Axle-Mounted Wheel Type Tread on Core
Handle Material Aluminum
Fork Thickness 1 in
Fork Type Fixed Invertible
Base Type Fixed Forkover

Description

Manual, Base Type Fixed Forkover, Lift Control Hand Winch, Lift Mechanism Chain/Cable, Fork Type Fixed Invertible, Load Capacity 500 lb, Fork Length 22 1/2 in, Fork Width 3 in, Width Between Forks 25 1/2 in, Width Across Forks 27 in, Minimum Lifting Height 3 1/2 in, Maximum Lifting Height 5 ft 11 in, Lifting Height Range 3 1/2 in to 5 ft 11 in, Overall Length 34 3/4 in, Overall Width 27 in, Overall Height with Forks Lowered 49 1/2 in, Overall Height with Forks Raised 71 in

Restrictions

  • This item has been restricted from sale in the following states: PR
