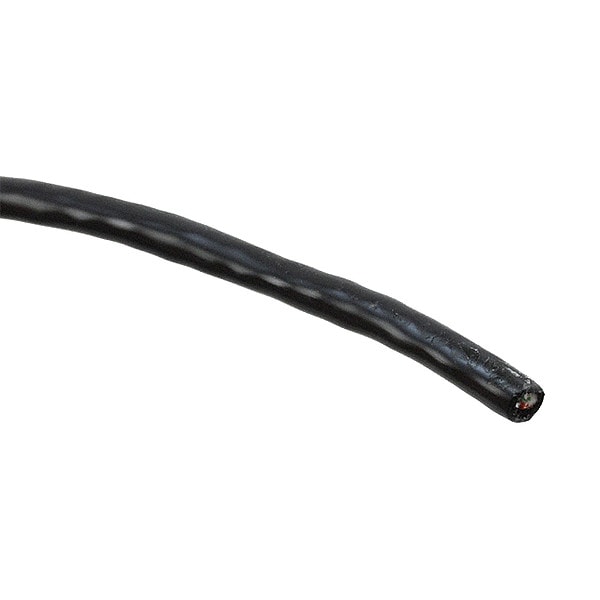

Data LAN Cable, 5e, 24 AWG, 50 ft, Black
- Mfr # 5136100
- Zoro # G610043999
product price:Â
$
136.99
/ea
Free Shipping & Returns
Key Features
Cable Length
50 ft
Standards
ANSI/TIA 568-C.2 ISO 11801, ICEA S-102-700, RoHS Compliant Directive (2002/95/EC), Telcordia (Bellcore) Specification GR-421-CORE Water Penetration Requirements
Performance Category
5e
Jacket Color
Black
Jacket Material
PE
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Product Information
- MFR #
- 5136100
- Zoro #
- G610043999
- UPC #
- -
- Country of Origin
- Germany
Dimensions
- Cable Length
- 50 ft
- Bend Radius
- 1 in
- Outside Diameter
- 1/4 in
Details
- Item
- Data LAN Cable
- Standards
- ANSI/TIA 568-C.2 ISO 11801, ICEA S-102-700, RoHS Compliant Directive (2002/95/EC), Telcordia (Bellcore) Specification GR-421-CORE Water Penetration Requirements
- Performance Category
- 5e
- Jacket Color
- Black
- Jacket Material
- PE
- Pulling Force
- 25 lb
- NEC Article and Type
- 800 CMR
- Package Type
- Spool
- Shielded
- Unshielded
- Maximum Operating Temperature
- 176 Degrees F
- Fire Rating
- Not Rated
- Maximum Impedance
- 100 ohm
- Conductor Gauge
- 24 AWG
- Insulation Material
- Polyolefin
- Number of Pairs
- 4
- Solid/Stranded
- Solid
- Resistance Properties
- Scratch Resistant, UV Resistant
- Number of Conductors
- 8
- Maximum Frequency
- 100 MHz
- Minimum Operating Temperature
- -49 Degrees F
Description
Data LAN Cable, Cable Length 50 ft, Conductor Gauge 24 AWG, Fire Rating Not Rated, Jacket Color Black, Jacket Material PE, Outside Diameter 1/4 in, Performance Category 5e, Shielded Unshielded, Number of Conductors 8, Number of Pairs 4, NEC Article and Type 800 CMR, Standards ANSI/TIA 568-C.2 ISO 11801, ICEA S-102-700, RoHS Compliant Directive (2002/95/EC), Telcordia (Bellcore) Specification GR-421-CORE Water Penetration Requirements, Package Type Spool, Solid/Stranded Solid, Bend Radius 1 in
