  13. Machine Dolly, 26,400 lb., Steel
Shop All Surface Plate
Gks-Perfekt

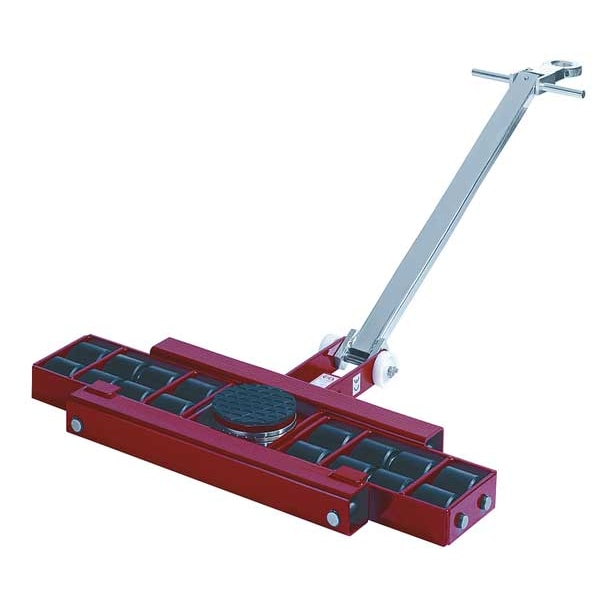

Machine Dolly, 26,400 lb., Steel

product price: $2,764.99
/ea
Item requires special delivery charges. A $95.00 per item surcharge will be applied.
Free 30-Day Returns

Key Features

  • Color Red
  • Overall Width 24 3/8 in
  • Number of Rollers 16
  • Load Capacity 26,400 lb
  • Overall Length 83 1/4 in
See all product information

Product Information

Dimensions

Overall Width 24 3/8 in
Overall Length 83 1/4 in
Roller Dia. 3 1/8 in
Overall Height 4 3/8 in
Roller Axle Diameter 1 in
Top Plate Length 6 3/4 in
Top Plate Width 6 3/4 in
Deck Width 40 in
Handle Length 42 1/2 in
Top Plate LxW 6 3/4 in x 6 3/4 in
Deck Height 4 3/8 in
Overall LxWxH 40 5/8 in x 24 3/8 in x 4 3/8 in
Roller Width 3 1/8 in
Tow Eye Inside Dia. 3 7/8 in
Wheel Width 3 5/16 in
Wheel Dia. 3 5/16 in

Details

Item Front Steerman Machine Roller
Color Red
Number of Rollers 16
Load Capacity 26,400 lb
Frame Material Steel
Roller Material Polyamide Blend
Features Durable, Simplified Design
Top Plate Surface Rubber Padded
Non-Marking Rollers Yes
For Surface Type Any Surface
Caster/Roller Mounting Location Standard
Top Plate Thickness 5/16 in
Non-Marking Casters/Wheels Yes
Roller Bearing Type Ball Bearing
Caster/Roller Configuration (16) Rollers
Frame Finish Powder Coated
Standards BGV D27, CE, DIN EN ISO 12100, Guideline 2006/42/EC of the European Parliament and the Council dated 17th May 2006, appendix II A
Assembled Partially Assembled
Roller Tread Material Polyamide
Top Plate Type Swivel
Number of Decks 1
Weight 172 lb
Includes Pulling Handle with Tow Eye
For Movement Type Turn/Swivel
Support Type Front

Description

Front Steerman Machine Roller, Load Capacity 26,400 lb, Deck Width 40 in, Deck Height 4 3/8 in, For Surface Type Any Surface, For Movement Type Turn/Swivel, Top Plate Length 6 3/4 in, Top Plate Width 6 3/4 in, Top Plate Surface Rubber Padded, Top Plate Type Swivel, Caster/Roller Configuration (16) Rollers, Frame Material Steel, Number of Decks 1, Frame Finish Powder Coated, Overall Length 83 1/4 in, Overall Width 24 3/8 in, Overall Height 4 3/8 in
