  13. Machine Dolly, 66,000 lb., Steel

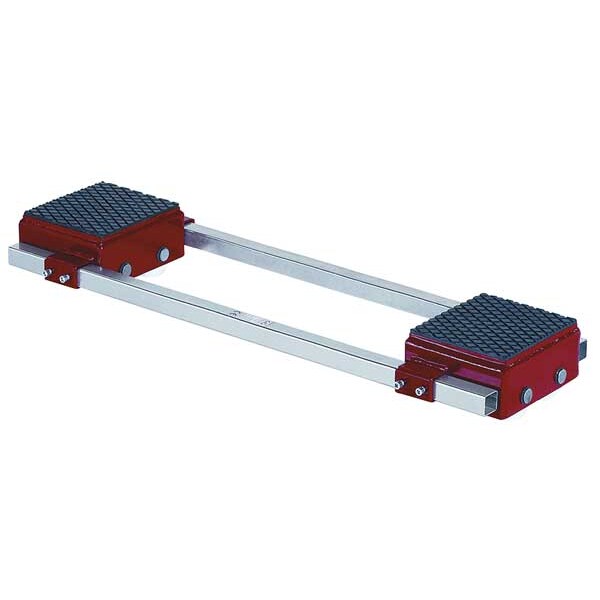

Gks-Perfekt Machine Dolly, 66,000 lb., Steel 3-11992 - main

Machine Dolly, 66,000 lb., Steel

  • Mfr # 3-11992

  • Zoro # G9867697

product price: $5,899.99
/ea
Additional $330.00 delivery surcharge applies per item.
See details

Key Features

Color
Red
Overall Height
7 1/8 in
Load Capacity
66,000 lb
Overall Length
13 3/4 in
Number of Rollers
12
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
3-11992
Zoro #
G9867697
UPC #
-
Country of Origin
Germany

Dimensions

Overall Height
7 1/8 in
Overall Length
13 3/4 in
Overall Width
58 5/8 in
Roller Dia.
5 1/2 in
Deck Height
7 1/8 in
Top Plate Thickness
5/16 in
Overall LxWxH
13 3/4 in x 58 5/8 in x 7 1/8 in
Top Plate LxW
11 3/4 in x 11 1/4 in
Roller Axle Diameter
1 11/32 in
Deck LxWxH
11 7/8 in x 11 3/8 in x 7 1/8 in
Deck Length
11 7/8 in
Deck Width
11 3/8 in
Top Plate Width
11 1/4 in
Top Plate Length
11 3/4 in
Width Across Deck
25 1/2 in to 72 in
Roller Width
3 3/8 in
Wheel Width
3 5/16 in
Wheel Dia.
5 1/2 in

Details

Item
Back Steerman Machine Roller
Color
Red
Load Capacity
66,000 lb
Number of Rollers
12
Frame Material
Steel
Roller Material
Polyamide Blend
Assembled
Partially Assembled
Standards
BGV D27, CE, DIN EN ISO 12100, Guideline 2006/42/EC of the European Parliament and the Council dated 17th May 2006, appendix II A
Caster/Roller Mounting Location
Standard
Non-Marking Casters/Wheels
Yes
For Surface Type
Any Surface
Top Plate Type
Fixed
Frame Finish
Powder Coated
Non-Marking Rollers
Yes
Support Type
Rear
Weight
353 lb
Number of Decks
2
Roller Bearing Type
Ball Bearing
Caster/Roller Configuration
(12) Rollers
Roller Tread Material
Polyamide
Includes
Connecting Bar
Top Plate Surface
Rubber Padded

Description

If you're looking for a heavy-duty surface plate, the GKS-PERFEKT 3-11992 Machine Dolly is your solution. It has a load capacity of 66,000 lbs., so it can easily accommodate even the heaviest machine tools. The steel roller dolly has an overall length of 13 3/4 in., width of 58 5/8 in. and height of 7 1/8 in.. The top plate measures 11 3/4 in. x 11 1/4 in.. and the deck measures 11 7/8 in. x 11 3/8 in.. With a red finish, this back steerman machine roller weighs 36 lb.. The roller diameter is 5 1/2", while the deck height is 7 1/8". If you need to move heavy equipment with ease, equip yourself with the GKS-PERFEKT 3-11992 Machine Dolly.
