Shop All Surface Plate
Gks-Perfekt

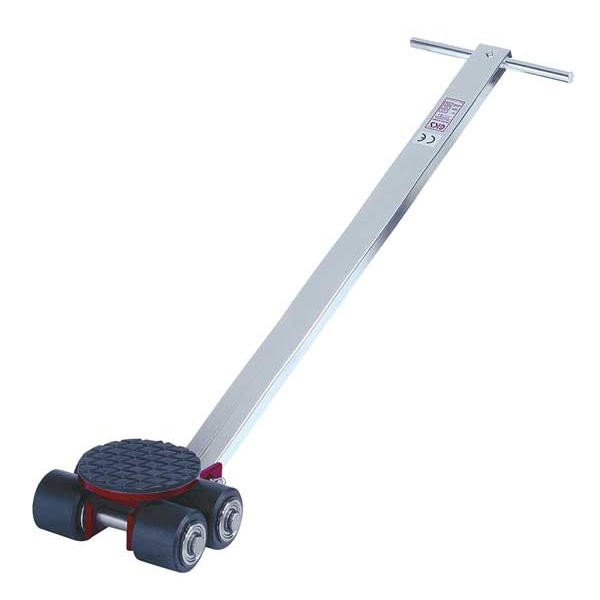

Machine Dolly, 6600 lb., Steel

product price: $796.99
/ea
Free Shipping & Returns
Free Shipping on orders over $50
Free 30-Day Returns

Key Features

  • Color Red
  • Overall Length 49 1/4 in
  • Frame Material Steel
  • Overall Width 9 1/8 in
  • Number of Rollers 4
See all product information

Product Information

Dimensions

Overall Length 49 1/4 in
Overall Width 9 1/8 in
Overall Height 4 3/8 in
Roller Dia. 3 1/8 in
Top Plate Length 6 3/4 in
Overall LxWxH 10 5/8 in x 9 1/8 in x 4 3/8 in
Deck Height 4 3/8 in
Top Plate LxW 6 3/4 in x 6 3/4 in
Deck Length 6 3/4 in
Deck LxWxH 6 3/4 in x 6 3/4 in x 4 3/8 in
Handle Length 37 3/8 in
Deck Width 6 3/4 in
Tow Eye Inside Dia. 3 7/8 in
Roller Axle Diameter 1 in
Roller Width 3 1/8 in
Top Plate Width 6 3/4 in
Wheel Width 3 5/16 in
Wheel Dia. 3 5/16 in

Details

Item Front Steerman Machine Roller
Color Red
Frame Material Steel
Number of Rollers 4
Load Capacity 6,600 lb
Roller Material Polyamide Blend
Features Durable, Simplified Design
Includes Pulling Handle with Tow Eye
Frame Finish Powder Coated
Assembled Partially Assembled
Top Plate Surface Rubber Padded
For Surface Type Any Surface
Top Plate Thickness 5/16 in
Non-Marking Rollers Yes
Non-Marking Casters/Wheels Yes
Caster/Roller Mounting Location Standard
Number of Decks 1
Roller Tread Material Polyamide
Weight 29 lb
Top Plate Type Swivel
Support Type Front
Roller Bearing Type Ball Bearing
For Movement Type Turn/Swivel
Caster/Roller Configuration (4) Rollers
Standards BGV D27, CE, DIN EN ISO 12100, Guideline 2006/42/EC of the European Parliament and the Council dated 17th May 2006, appendix II A

Description

Front Steerman Machine Roller, Load Capacity 6,600 lb, Deck Length 6 3/4 in, Deck Width 6 3/4 in, Deck Height 4 3/8 in, For Surface Type Any Surface, For Movement Type Turn/Swivel, Top Plate Length 6 3/4 in, Top Plate Width 6 3/4 in, Top Plate Surface Rubber Padded, Top Plate Type Swivel, Caster/Roller Configuration (4) Rollers, Frame Material Steel, Number of Decks 1, Frame Finish Powder Coated, Overall Length 49 1/4 in, Overall Width 9 1/8 in, Overall Height 4 3/8 in
