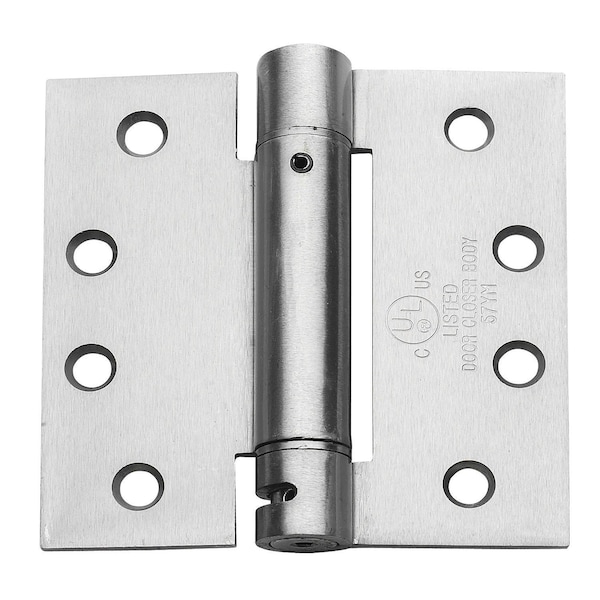

4 in. x 4 in. Brushed Chrome Full Mortise Spring Squared Hinge with Non-Removable Pin

This model of Global Door Controls is considered as a plain bearing full mortise single acting spring hinge. It's highly recommended for use on commercial and residential door applications. Moreover, it's advised for use where automatic self closing of a door is required. The knuckle hinge is adjustable and the spring tension can be increased or decreased by using adjusting tool included. For maximum versatility use three spring hinges on required opening. Full spring tension may not be required on all hinges but allows for greater adjustment. This type sized 4 x 4 in. comes with a squared radius in its corner, bundled with a fixed pin. Item is available in many finishes: Brushed Chrome, Satin Nickel, Bright Brass and Prime Coat.

• •Adjustable spring hinge for commercial and residential use
• •Made from solid steel for more durability and hardness
• •Square radius hinge with fixed pin
• •Full mortise single acting spring hinge, plain bearing
• •Recommended for use on commercial and residential door applications
• •Intended for use where automatic self closing of a door is required
• •Steel base material with fixed steel pin
• •Corner: Squared radius
• •Thickness: 0.129 in.
• •Installation: template screw hole locations
• •Easy installation
• •Packed with both wood and machine screws
• •Conforms to ANSI / BHMA - K81071F for self closing hinges
• •Meets NFPA 80 for 3 hour fire rating
• •UL Listed R19063 for “A” label fire doors
• •Brushed Chrome finish
• •Sold individually not in packs
• •1 Year mechanical and finish warranty
