Duronodic Grade 1 Overhead Concealed Light Duty Door Closer with 90 Degree Swing Radius and Hold Open Arm
Mfr # TC7022LP
Zoro # G401861351
Key Features
Specifications
Product Information
Dimensions
Details
Description

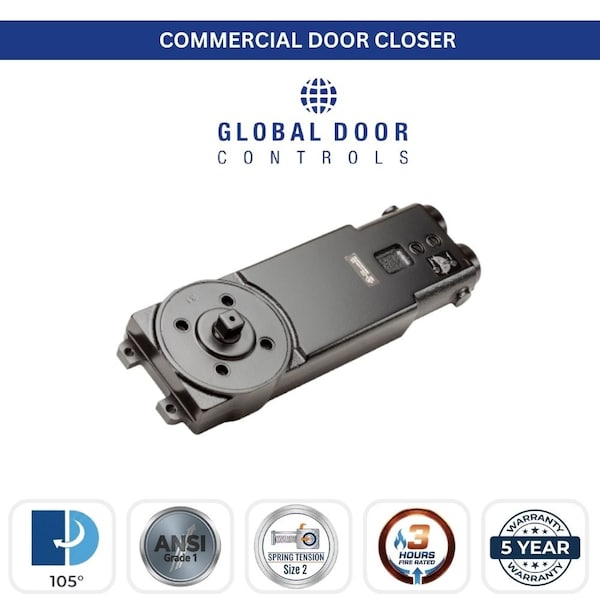

The Global Door Controls TC7022 closers own a compact design that offers an excellent "hidden" solution for those who prefer the visual advantages of a concealed door closer. This type of closers is Grade 1 certified. It has multiple spring tensions available to match any door size and weight. This model features a 90° swing radius with adjustable spring tension. Consistent closure speed is assured with its temperature-sensitive hydraulic fluid. Items are only available in Duronodic finish. They carry a 5 Year mechanical warranty to be the guarantee for our clients.
- •Overhead concealed closer with cast iron housing
- •Adjustable latch & closing speeds
- •Meets the performance standards of Grade 1, ANSI BHMA A156.4
- •Recommended for installation in aluminum door frame applications
- •Center-pivoted for single and double acting doors
- •Comes non-handed / reversible therefore it can be installed on a left hand or a right hand door
- •Made from cast iron housing, high tensile steel camshaft and pistons
- •Mounting fits in an aluminum header or transom bar as small as 1-3/4 in. x 4 in.
- •Fits with doors weighing up to 125 lbs.
- •Includes two independent regulated valves for latch and closing speed adjustment
- •Duronodic finish
- •90 degree back stop with hold open closer
- •5 Year mechanical warranty
