  11. Duronodic Grade 1 Overhead Concealed Medium Duty Door Closer with 105 Degree Swing Radius and Hold Open Arm
Global Door Controls

Duronodic Grade 1 Overhead Concealed Medium Duty Door Closer with 105 Degree Swing Radius and Hold Open Arm

  • Mfr # TC7030LP

  • Zoro # G201860929

product price: $112.99
/ea
Free Shipping & Returns
Free Shipping on orders over $50
after you
Free 30-Day Returns

Key Features

  • Color Bronze
  • Finish Bronze
  • Housing Depth 12 in
  • Housing Height 3 in
  • Material Metal
See all product information
Get 10% Off Your First Order
Real Support From Real People
Contact Our U.S.-Based teams
Free 30-Day Returns
Return Policy
Accepted Payment Options
visa mastercard american express discover paypal
Net 30

Product Information

Dimensions

Housing Depth 12 in
Housing Height 3 in
Width 3 in

Details

Color Bronze
Finish Bronze
Material Metal
Location Type Commercial
Door Handing Universal
Type Door Closer

Description

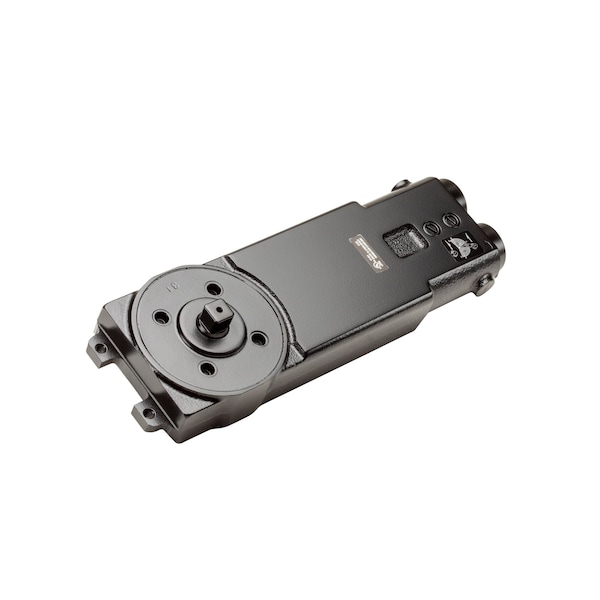

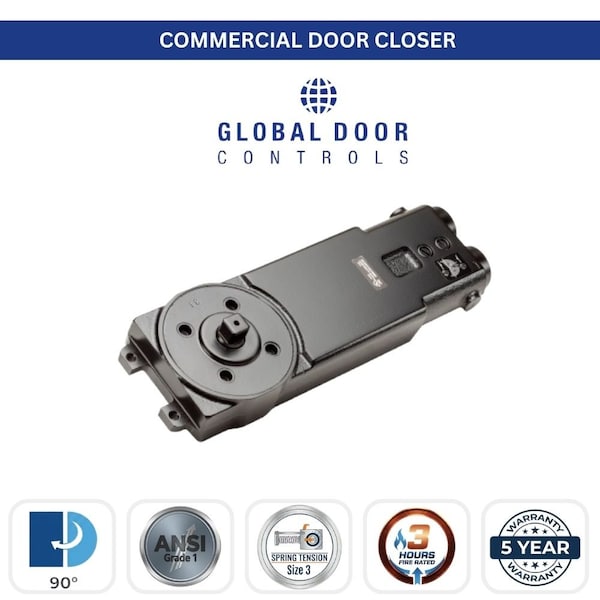

The Global Door Controls TC7030 closers own a compact design that offers an excellent "hidden" solution for those who prefer the visual advantages of a concealed door closer. This type of closers is Grade 1 certified. It has multiple spring tensions available to match any door size and weight. This model features a 105° swing radius with adjustable spring tension. Consistent closure speed is assured with its temperature-sensitive hydraulic fluid. Items are only available in Duronodic finish. They carry a 5 Year mechanical warranty to be the guarantee for our clients.


  • •Overhead concealed closer with cast iron housing
  • •Adjustable latch & closing speeds
  • •Meets the performance standards of Grade 1, ANSI BHMA A156.4
  • •Recommended for installation in aluminum door frame applications
  • •Center-pivoted for single and double acting doors
  • •Comes non-handed / reversible therefore it can be installed on a left hand or a right hand door
  • •Made from cast iron housing, high tensile steel camshaft and pistons
  • •Mounting fits in an aluminum header or transom bar as small as 1-3/4 in. x 4 in.
  • •Fits with doors weighing up to 175 lbs.
  • •Includes two independent regulated valves for latch and closing speed adjustment
  • •Duronodic finish
  • •105 degree back stop with hold open closer
  • •5 Year mechanical warranty
