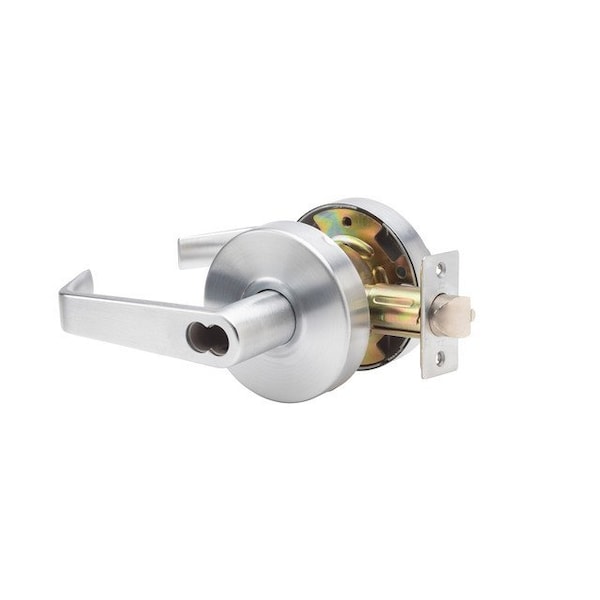

Eiffel Standard Duty Brushed Chrome Grade 2 Commercial Entry Door Handle with Lock, Clutch Function and IC Core

The Global Door Controls GAL cylindrical entry leverset comes in a brushed chrome finish and includes an ANSI strike. This entry door handle has a push button on the interior and a key for the exterior side of the lever, allowing you to leave quickly and re-enter easily. This leverset is ADA compliant and includes a clutch function that allows the lever to rotate without unlatching the lock. Constructed for durability, this lever exceeds ANSI standards for Grade 2, making it the perfect fit for commercial, standard duty applications. The lever is prepared for any small format interchangeable core installation for the entry cylinder, but the cylinder itself is sold separately. It includes all necessary hardware and instructions, resulting in an easy installation process.

• •Keyed entry lever best used for security on exterior doors
• •ANSI A156.2 Grade 2 Certified
• •Freewheeling clutch lever mechanism for added safety
• •Fits doors with 1-3/8 to 1-5/8 in. thickness
• •Removable Thru-Bolts to prevent lock rotation
• •Non-handed/reversible (fits both right and left-handed doors)
• •Backset: 2-3/4 in., Latch Face: 1-1/8 x 2-1/4 in.
• •Includes ANSI Strike, measuring 1-1/4 x 4-7/8 in.
• •Schlage "C" keyway, includes two 5 pin keys (6 pin capable)
• •Latch: 5/8 in. projection Stainless Steel 3 hour UL R20759
• •Bore: 2-1/8 in. hole retrofits all cylindrical locksets
• •Construction: Steel, Zinc Dichromated resists corrosion
• •ADA compliant
• •1 year mechanical and finish warranty
• •Fits 161 door prep
• •Individual spring on each side prevents lever sag
