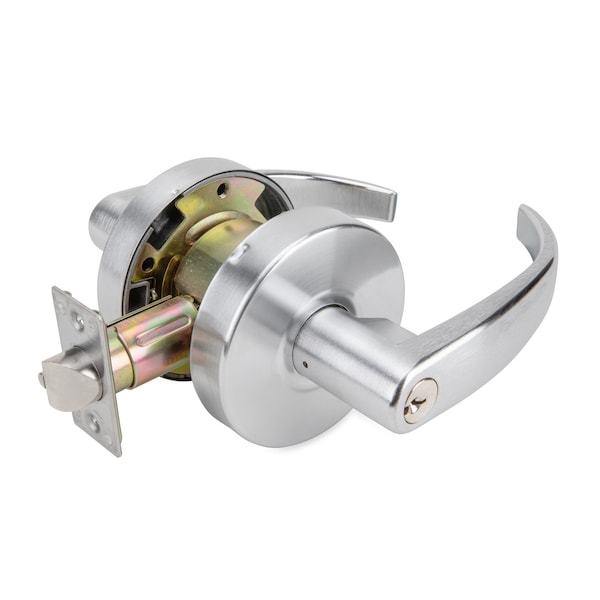

GAL Series Pisa Style Heavy-Duty Commercial Cylindrical Lever, Grade 2 Storeroom in Brushed Chrome
Mfr # GAL-1180P-626
Zoro # G601860963
Key Features
Specifications
Product Information
- MFR #
- GAL-1180P-626
- Zoro #
- G601860963
- UPC #
- 704780173250
- Country of Origin
- China
Dimensions
- Height
- 7 in
- Width
- 3 in
Details
- Electrical/Mechanical
- Mechanical
- Style
- Classic
- Lockset Finish
- Brushed Chrome
- Keyway Type
- C
- Location Type
- Commercial;Residential
- Finish
- Chrome
- Type
- Locksets
- Color
- Brushed Chrome
- Material
- Steel
- Weight
- 3.2
- Includes
- Installation Instructions;Hardware;Self Guiding Screws;Mounting Hardware
- Number of Pins
- 5
- Standards
- UL Listed, ANSI Certified, ADA Compliant
- Features
- Easy Installation
- Strike Type
- Square Corner
- Backset
- 2-3/4 in
- Number of Keys
- 2
- Grade
- ANSI Grade 2 (Better)
Description
The Global Door Controls GAL cylindrical storeroom leverset comes in a brushed chrome finish and includes an ANSI strike. This storeroom door handle always requires a key to open the door from the outside, the inside remains unlocked. This leverset is ADA compliant and includes a clutch function that allows the lever to rotate without unlatching the lock. Constructed for durability, this lever exceeds ANSI standards for Grade 2, making it the perfect fit for commercial, standard duty applications. It includes all necessary hardware and instructions, resulting in an easy installation process.
- •Keyed locking lever automatically locks on the outside if closed
- •ANSI A156.2 Grade 2 Certified
- •Freewheeling clutch lever mechanism for added safety
- •Fits doors with 1-3/8 to 1-5/8 in. thickness
- •Removable Thru-Bolts to prevent lock rotation
- •Non-handed/reversible (fits both right and left-handed doors)
- •Backset: 2-3/4 in., Latch Face: 1-1/8 x 2-1/4 in.
- •Includes ANSI Strike, measuring 1-1/4 x 4-7/8 in.
- •Schlage "C" keyway, includes two 5 pin keys (6 pin capable)
- •Latch: 5/8 in. projection Stainless Steel 3 hour UL R20759
- •Bore: 2-1/8 in. hole retrofits all cylindrical locksets
- •Construction: Steel, Zinc Dichromated resists corrosion
- •ADA compliant
- •Fits 161 door prep
- •Individual spring on each side prevents lever sag
- •1 year mechanical and finish warranty
