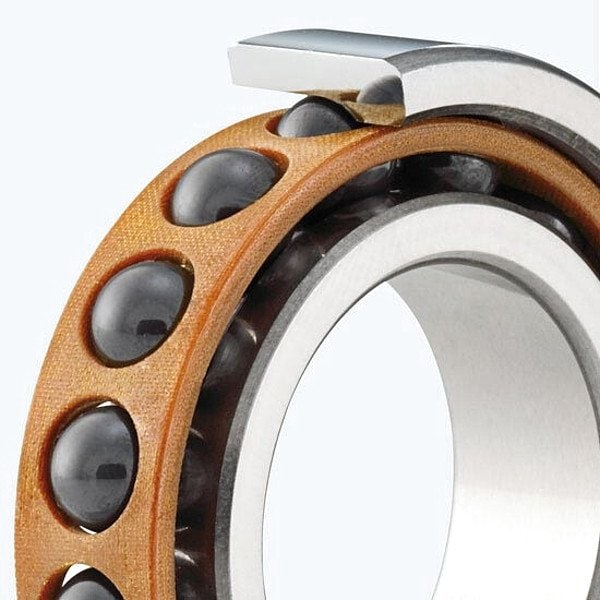

Precison Angular contact Bearing, PR
Mfr # HYS6009-2RZ CTA P4+ DUL T274/25%
Zoro # G216497608
product price:Â
$
892.99
/pr
Free Shipping & Returns
Key Features
Static Radial Load Capacity
15,900 N
Industry Number
S 6009
Ball Material
Ceramic
Application
General Purpose
Maximum Speed
26,250 RPM, 35,000 RPM
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Product Information
- MFR #
- HYS6009-2RZ CTA P4+ DUL T274/25%
- Zoro #
- G216497608
- UPC #
- -
- Country of Origin
- Germany
Dimensions
- Bore Diameter
- 45 mm
- Shaft Fillet Radius
- 1 mm
- Overall Width
- 16 mm
- Outside Diameter
- 75 mm
Details
- Item
- Angular Contact Ball Bearing
- Static Radial Load Capacity
- 15,900 N
- Industry Number
- S 6009
- Ball Material
- Ceramic
- Application
- General Purpose
- Maximum Speed
- 26,250 RPM, 35,000 RPM
- Matched Bearing Type
- Duplex
- Bearing Lubrication
- Maintenance-Free
- ABEC Rating
- 7
- Series
- HYS
- Seal Type
- Non-Contact
- Contact Bearing Type
- Angular Contact
- Cage Material
- Phenolic
- Closure
- Double Sealed
- Dynamic Radial Load Capacity
- 27,000 N
- Contact Angle
- 15 Degrees
- Standards
- ABMA, DIN 628-6, ISO Certified
- System of Measurement
- Metric
- Preload
- 800 N
Description
Angular Contact Ball Bearing, Ball Material Ceramic, Bearing Industry Number S 6009, Bore Diameter 45 mm, Cage Material Phenolic, Closure Double Sealed, Contact Angle 15 Degrees , Contact Bearing Type Angular Contact, Matched Bearing Type Duplex, Maximum Speed 26,250 RPM, 35,000 RPM, Outside Diameter 75 mm, Overall Width 16 mm, Seal Type Non-Contact, System of Measurement Metric, ABEC Rating 7, Application General Purpose, Dynamic Radial Load Capacity 27,000 N, 1 Pair
Restrictions
This item has been restricted from sale in the following states:
CA
