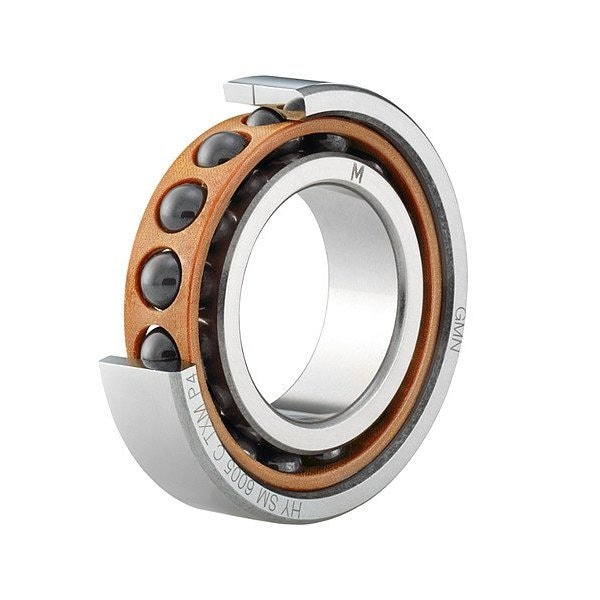

Precison Angular contact Bearing, PR
Mfr # HYSM6013 CTA P4+ DUL
Zoro # G316497546
product price:Â
$
1,242.99
/pr
Free Shipping & Returns
Key Features
Ball Material
Ceramic
Contact Bearing Type
Angular Contact
Dynamic Radial Load Capacity
25,000 N
Shaft Fillet Radius
1.1 mm
Maximum Speed
22,500 RPM, 30,000 RPM
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Product Information
- MFR #
- HYSM6013 CTA P4+ DUL
- Zoro #
- G316497546
- UPC #
- -
- Country of Origin
- Germany
Dimensions
- Shaft Fillet Radius
- 1.1 mm
- Overall Width
- 18 mm
- Outside Diameter
- 100 mm
- Bore Diameter
- 65 mm
Details
- Item
- Super Precison Angular contact Bearing
- Ball Material
- Ceramic
- Contact Bearing Type
- Angular Contact
- Dynamic Radial Load Capacity
- 25,000 N
- Maximum Speed
- 22,500 RPM, 30,000 RPM
- Static Radial Load Capacity
- 13,000 N
- Industry Number
- SM 6013
- Matched Bearing Type
- Duplex
- Closure
- Open
- Preload
- 760 N
- System of Measurement
- Metric
- ABEC Rating
- 7
- Standards
- ABMA, DIN 628-6, ISO Certified
- Application
- Grinding, Milling
- Series
- HYS
- Cage Material
- Phenolic
- Contact Angle
- 15 Degrees
- Bearing Lubrication
- Relubricateable
Description
Angular Contact Ball Bearing, Ball Material Ceramic, Bearing Industry Number SM 6013, Bore Diameter 65 mm, Cage Material Phenolic, Closure Open, Contact Angle 15 Degrees , Contact Bearing Type Angular Contact, Matched Bearing Type Duplex, Maximum Speed 22,500 RPM, 30,000 RPM, Outside Diameter 100 mm, Overall Width 18 mm, System of Measurement Metric, ABEC Rating 7, Application Grinding, Milling, Dynamic Radial Load Capacity 25,000 N, 1 Pair
