Shop GOATTHROAT PUMPS

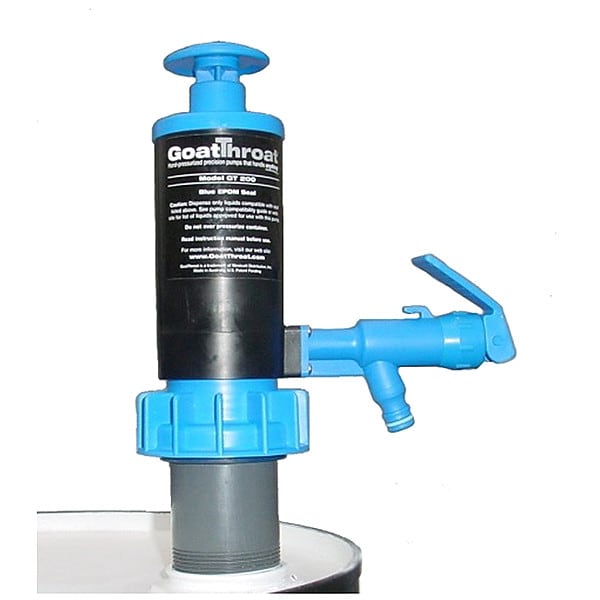

HandPump, Piston, PP, 48oz/stroke

  • Mfr # GT200

  • Zoro # G404836967

product price:  $329.99
/ea
Free Shipping & Returns

Key Features

Action Type
Piston
For Container Size
5 gal, 55 gal
Max. Flow Rate
4.5 gal per stroke
Max. Viscosity
1,400 SUS
Wetted Materials
Polypropylene
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
GT200
Zoro #
G404836967
UPC #
791885901376
Country of Origin
United States

Dimensions

For Container Size
5 gal, 55 gal
Suction Tube Length - Maximum
41 1/2 in
Adapter Connection Diameter
2 in
Suction Tube Length - Minimum
10 3/8 in

Details

Item
Hand Pump
Action Type
Piston
Max. Flow Rate
4.5 gal per stroke
Max. Viscosity
1,400 SUS
Wetted Materials
Polypropylene
Features
External Pressure Release Valve Must be Opened by Hand Before Removing Pump from Container, Groundable Pump: Internal Pressure Relieve Valve Opens Automatically If Container Pressure Exceeds 6Psig, Standard Pump: Internal Pressure Relieve Valve Opens Automatically If Container Pressure Exceeds 8Psig
Max. Fluid Temp.
120 Degrees F
Food Grade
Yes
Min. Operating Temp.
110 Degrees F
Housing Material - Pumps
Polypropylene
Pump Connection OD
3/8 in
Pump Connection ID
1/2 in
Max. Outlet Pressure
7 psi
Max. Head - Pumps
10 ft
Max. Head Pressure
7 psi
Includes Suction Tube
Yes
Minimum Operating Temperature
110 Degrees F
Maximum Head
10 ft
For Container Type
Drum, Pail
Includes Nozzle
No
Includes Discharge Hose
No
Includes Follower Plate
No Follower Plate Included
Seal Material
EPDM
Maximum Flow Rate
48 oz per stroke
Container Cover Type Included
No Cover Included
Adapter Connection Standard
MNPT
Maximum Viscosity
1,400 SUS
Duty Cycle
Continuous
Suction Tube Material
Polypropylene
Maximum Head Pressure
3 psi
Maximum Outlet Pressure
7 psi
Includes Spout
Yes
Static Protection
Not Groundable
Meter Type Included
No Meter Included
Includes Bung Adapter
Yes
Mount Type
Bung
Adapter Material
EPDM
Power Source - TS Only
Manual
Includes
Molykote 111 Grease, PTFE Tape, Standoff
Spout Material
Polypropylene
Pump Technology
Piston
Maximum Fluid Temperature
140 Degrees F
Wetted Material
EPDM/Polypropylene
Housing Material
Polypropylene
Power Source
Manual

Description

Hand Operated Drum Pump, Max. Outlet Pressure 7 psi, Pump Connection OD 3/8 in, Features External Pressure Release Valve Must be Opened by Hand Before Removing Pump from Container, Groundable Pump: Internal Pressure Relieve Valve Opens Automatically If Container Pressure Exceeds 6Psig, Standard Pump: Internal Pressure Relieve Valve Opens Automatically If Container Pressure Exceeds 8Psig, Housing Material - Pumps Polypropylene
