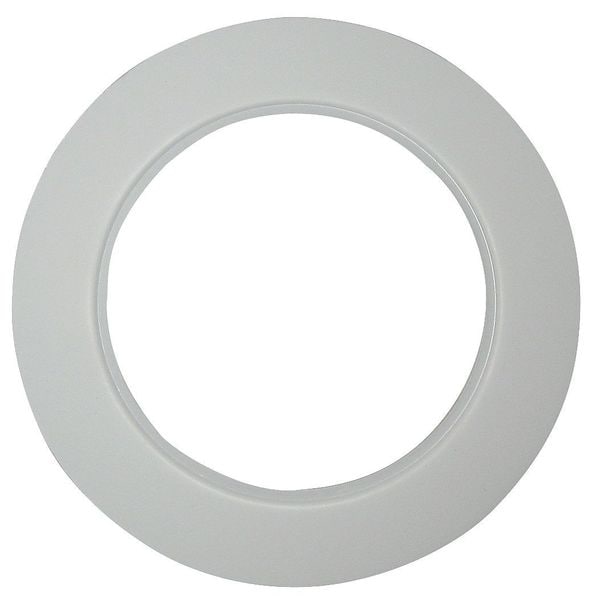

Ring Gasket, 8 In, Expanded PTFE

  • Mfr # STYLE 800

  • Zoro # G4659067

product price:
$
90.79
/ea

Key Features

Pipe Size
8 in
Outside Dia.
11 in
Inside Dia.
8 5/8 in
Thickness
1/8 in
Material of Construction
Molded Expanded PTFE
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Details

MFR #
STYLE 800
Zoro #
G4659067
UPC #
-
Country of Origin
United States
Material of Construction
Molded Expanded PTFE
Max. Pressure (PSI)
3,000 psi
Flange Class
Class 150
Color
White
Item
Ring Flange Gasket
Product Type
Ring Gasket
Metal Detectable
No
Type
Ring Gasket
Continuous Max. Temp. (F)
600 Degrees F
Standards
ASME B16.21, ASME/ANSI Pressure Class-150 LB
Temp. Range (F)
-450 to 600
For Piping System
Chemical, Minerals, Mining, Power Generation, Pulp and Paper Manufacturing, Semiconductor Manufacturing
FDA Approved
No
For Material Type
Fiber Reinforced Plastic, Glass-Lined Steel, Steel
Binder Material
None
For Fluid Type
Acids, Alkali, Solvents
For Flange ANSI Class
150
Reinforced
No
Market
Industrial
Metal Detectable Gasket
No
Insert Material
None
Minimum Operating Temperature
-452 Degrees F
Hardness
Not Rated
Resistance Properties
Chemical-Resistant
Gasket Type
Ring Gasket
System of Measurement
Inch
Gasket Material
ePTFE
X-Ray Detectable
No
Maximum Operating Temperature
600 Degrees F
Features
Long-Term reliable Sealing

Description

Ring Flange Gasket, Gasket Material ePTFE, Insert Material None, For Pipe Size 8 in, For Flange ANSI Class 150, Binder Material None, Color White, Inside Diameter 8 5/8 in, Minimum Operating Temperature -452 Degrees F, Maximum Operating Temperature 600 Degrees F, Outside Diameter 11 in, Thickness 1/8 in, Gasket Type Ring Gasket, Metal Detectable Gasket No, Included Fasteners Not Applicable, Hardness Not Rated, Includes Mounting Hardware No, X-Ray Detectable No
