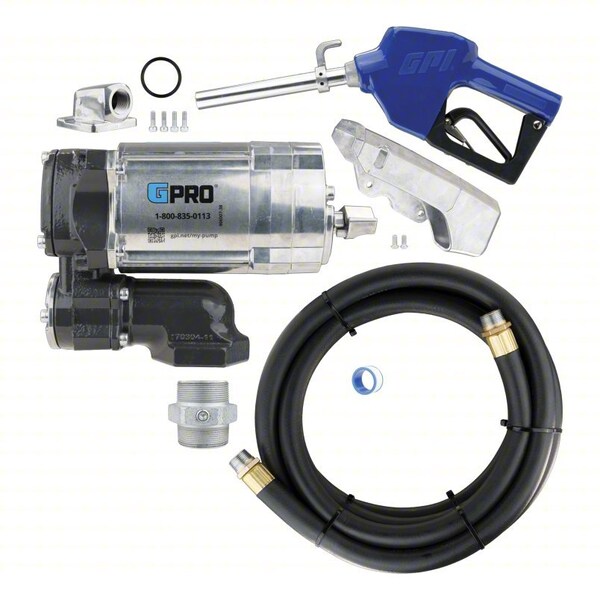

Electric Drum Pump, Cast Iron, 230 V AC

  • Mfr # V20-115AU
  • Zoro # G010070700
product price:
$
1,115.99
/ea
Free Shipping & Returns

Key Features

Seal Material
FKM/Nitrile
Self-Priming
Yes
Max. Viscosity
50 SUS
Motor Type
Universal AC
Overall Length
14 1/16 in
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
V20-115AU
Zoro #
G010070700
UPC #
-
Country of Origin
United States

Dimensions

Overall Length
14 1/16 in
Hose Length
18 ft
For Container Size
10 gal, 500 gal
Hose Outside Dia.
3/4 in
Adapter Connection Diameter
2 in
Hose Outside Diameter
3/4 in
Wire Rope Length
14 1/16 in
Length
14 1/16 in

Details

Seal Material
FKM/Nitrile
Self-Priming
Yes
Max. Viscosity
50 SUS
Item
Electric Drum Pump
Motor Type
Universal AC
Wetted Materials
Buna-N, Stainless Steel
Metered
No
Includes
Tank Adapter
Agency Compliance
cULus
Motor RPM
1,690 RPM
Housing Material - Pumps
Cast Iron
Duty Cycle
30 Minutes On/30 Minutes Off
Max. Fluid Temp.
125 Degrees F
Power Source
Corded Electric
Pump Connection OD
1 in
Food Grade
No
Thermal Protection
Yes
Max. Flow Rate
20 gpm
Pump Connection Type
FNPT
Nozzle Fluid Compatibility
Diesel, Gasoline
Hose Cover Material
Buna-N
Rated Voltage
230 V AC
Pump Connection ID
1 in
Max. Outlet Pressure
25 psi
Explosion Proof
Yes
Diesel Exhaust Fluid Compatible
No
Includes Suction Tube
No
Includes Nozzle
Yes
Includes Discharge Hose
Yes
For Media Type
Diesel, Gasoline, Kerosene
Variable Speed
No
Motor HP
1/2 hp
Nozzle Operation
Automatic
Discharge Connection Type
FNPT
Hose Tube Material
Buna-N
Mount Type
Bung
Full Load Amps
20.0 A
Includes Follower Plate
No Follower Plate Included
Housing Material
Cast Iron
Motor Enclosure Design
Totally Enclosed Non-Ventilated
Housing Finish
Powder Coated
Maximum Head
15 ft
Chemical Compatibility
Diesel, Gasoline, Kerosene
Maximum Viscosity
50 SUS
Phase
Single
Hazardous Location Class
Class I Division 2 Group D
Maximum Flow Rate
20 gpm
Pump Technology
Vane
Includes Spout
No
Full Load Current
20 A
Motor Horsepower
1/2 hp
Maximum Fluid Temperature
125 Degrees F
Static Protection
Grounding Line Included
Adapter Connection Standard
MNPT
Maximum Outlet Pressure
25 psi
Standards
cULus
Wetted Material
Buna-N/Stainless Steel
Meter Type Included
No Meter Included
Maximum Head Pressure
12 psi
Includes Bung Adapter
Yes
Motor Speed
1,690 RPM
For Container Type
Tank
Power Source - TS Only
Corded Electric
Power Source - old
Corded Electric

Description

Fuel Transfer Pump, Max. Outlet Pressure 25 psi, Rated Voltage 230V AC, Pump Connection ID 1 in, Hose Length 18 ft, Nozzle Operation Automatic, Thermal Protection Yes, Power Source Electric, Variable Speed No, Includes Discharge Hose Yes, Self-Priming Yes, Discharge Connection Type FNPT, Includes Nozzle Yes, Pump Connection Type FNPT
