Shop GPI

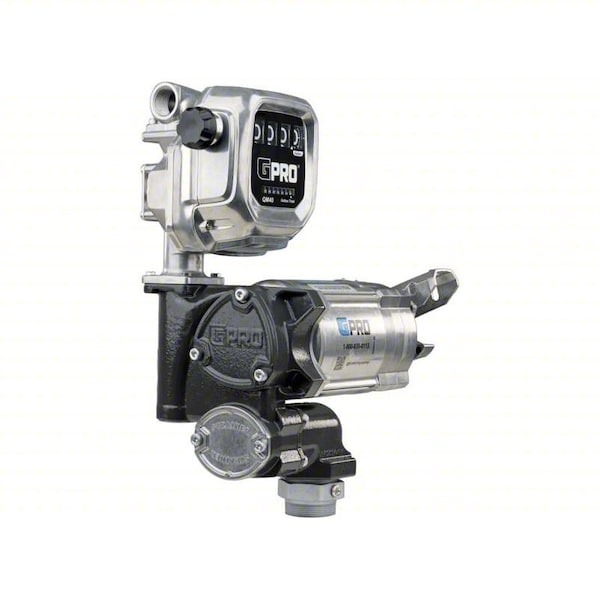

ElectricDrumPump, Alum/Iron, 115/230VAC

  • Mfr # 171050-01

  • Zoro # G222323946

product price:
$
1,383.99
/ea
Free Shipping & Returns

Key Features

Includes Spout
No
Maximum Viscosity
50 SUS
Static Protection
Grounding Line Included
Power Source - TS Only
Cordless Battery
Nozzle Fluid Compatibility
Diesel, Gasoline
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
171050-01
Zoro #
G222323946
UPC #
00031401011982
Country of Origin
United States

Dimensions

For Container Size
10 gal, 1,000 gal
Adapter Connection Diameter
2 in

Details

Includes Spout
No
Maximum Viscosity
50 SUS
Static Protection
Grounding Line Included
Power Source - TS Only
Cordless Battery
Nozzle Fluid Compatibility
Diesel, Gasoline
Duty Cycle
30 Minutes On/30 Minutes Off
Phase
Single
Motor Horsepower
1/2 hp
Includes Follower Plate
No Follower Plate Included
Hazardous Location Class
Class I Division 1 Group D
Includes Bung Adapter
Yes
Meter Unit Of Measure
Gallons
Mount Type
Bung
Full Load Current
5.2 A
Includes
Hardware, Lockable Nozzle Holder, Outlet Fitting, Tank Adapter, Thread Tape
Minimum Fluid Temperature
-20 Degrees F
Pump Technology
Vane
Item
Electric Drum Pump
Rated Voltage
115/230 V AC
Housing Material
Aluminum/Cast Iron
Maximum Fluid Temperature
125 Degrees F
Maximum Oil Flow
20 gpm
Pump Connection OD
1 in
Chemical Compatibility
Diesel, Gasoline, Kerosene
Includes Nozzle
No
Adapter Connection Standard
MNPT
Includes Suction Tube
No
Variable Speed
No
Housing Finish
Powder Coated
Standards
cULus Motor
Wetted Material
Acetal/Aluminum/Carbon/Cast Iron/FKM/Nitrile Rubber/PBT/Polyester/Steel
Maximum Head
15 ft
Maximum Outlet Pressure
25 psi
Frequency
50/60 Hz (230 V AC); 60 Hz (115 V AC)
Pump Connection ID
1 in
Seal Material
Buna-N
Maximum Head Pressure
25 psi
Maximum Flow Rate
20 gpm
Not Recommended Chemicals
Diesel Fuel, B20, Gasoline, E15, Kerosene
Meter Type Included
Mechanical
For Container Type
Tank
Motor Enclosure Design
Totally Enclosed Non-Ventilated
Features
Four Bolts and an O-Ring Quickly Attach a Filter, Meter, or both, High Pressure Performance Ideal with Hose Reel, Multidirectional 90 Degree Outlet to Adapt Easily for your Application, QM40 Meter Has Magnetic Drive Eliminates Drive Shaft Leaks, QM40 Meter Register Rotates to Easily Read Register in any Application, Quick-Fit Modular Design Eliminates Leaks
Motor Speed
1,690 RPM
Includes Discharge Hose
No
Pump Connection Type
FNPT
Power Source
Cordless Battery
Power Source - old
Cordless Battery

Description

Electric Drum Pump, Rated Voltage 115/230 V AC, Plug Type Not Applicable, Pump Connection ID 1 in, Suction Tube OD Not Applicable, Hose Length Not Applicable, Suction Tube Length Not Applicable, Includes Bung Adapter Yes, Nozzle Operation Not Applicable, Power Source Cordless Battery, Variable Speed No, Includes Discharge Hose No
