Shop GPI

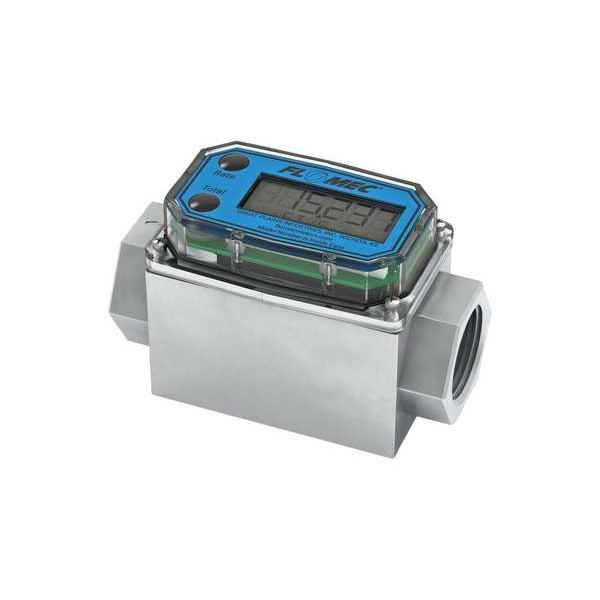

Electronic Flowmeter, 1", FNPT, 6" L

  • Mfr # A1Q9GMN025NA1

  • Zoro # G800690071

product price:
$
495.00
/ea
Free Shipping & Returns

Key Features

Type
Turbine
Housing Material
Nylon
For Pipe Size
1 in
Flow Material
Water, Water-Based Non-Corrosive Fluids, Water-Like Liquids
Connection Size
1 in
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
A1Q9GMN025NA1
Zoro #
G800690071
UPC #
-
Country of Origin
United States

Dimensions

For Pipe Size
1 in
Connection Size
1 in
Width (In.)
2 in
Length (In.)
4 in
Height (In.)
2 1/2 in
Overall Length
3.4 in
Overall Width
2.1 in
Overall Height
0.9 in
Wire Rope Length
3.4 in
Length
3.4 in

Details

Item
Electronic Flowmeter
Type
Turbine
Housing Material
Nylon
Flow Material
Water, Water-Based Non-Corrosive Fluids, Water-Like Liquids
Connection Type
FNPT
Max. Pressure
300 psi
Max. Viscosity
20 cps
Wetted Materials
Aluminum, Ceramic, Nylon, Stainless Steel, Tungsten Carbide
Frequency Range (Hz)
11 to 110
Flow Range
0.3 to 3 gpm
Fluid Temp. Range
0 Degrees to 129 Degrees F
Display Units
gal
Power Requirement
2-AAA Alkaline Batteries
Flow Range @ GPH
1.80 to 180
Shaft Material
Tungsten Carbide
Accuracy (%)
+/- 1.5
Flow Range (GPM)
0.3 to 3
Display Type
Digital
Standards
ATEX, CE Certified, FM Approved, IECEx
Flow Range (LPM)
1 to 11
Rotor Type
Nylon Paddlewheel
Sensor Type
Turbine
Output Type
4-20 mA
Mounting Orientation
Universal
Includes Totalizer
Yes
Accuracy
+/-5%
Compatible Flow Material
Water-Like Liquids
Flow Rate - Maximum
3 gpm
Flow Rate - Minimum
0.3 gpm
Voltage - Maximum
1.5V
Media Temperature - Minimum
-40 Degrees F
Frequency - Maximum
110 Hz
Wetted Material
316 Stainless Steel, Aluminum, Ceramic, Ferrite, Nylon, Tungsten Carbide
Flowmeter Type
Turbine
Operating Pressure - Maximum
150 psi
Frequency - Minimum
11 Hz
Product Type
Commercial Grade Meter
Media Temperature - Maximum
250 Degrees F
Pulse Rate
999,999 pulses/gal
Unit Of Measure
Gallons, Liters
Viscosity - Maximum
100 cps
Rotor Material
Nylon

Description

Electronic Flowmeter, Product Type Commercial Grade Meter, Flowmeter Type Turbine, Accuracy +/-5 Percent, Connection Size 1 in, Connection Type FNPT, Compatible Flow Material Water-Like Liquids, Media Temperature - Maximum 250 Degrees F, Media Temperature - Minimum -40 Degrees F, Viscosity - Maximum 100 cps, Voltage - Maximum 1.5V, Housing Material Nylon, Rotor Material Nylon, Shaft Material Tungsten Carbide

Restrictions
