Gpi

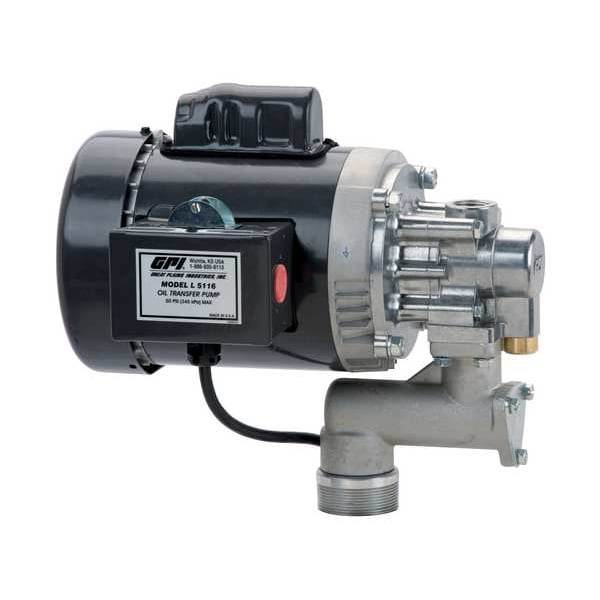

Oil Transfer Pump, 115/230VAC, 1/2 HP

product price: $749.99
/ea
Free Shipping & Returns
Free Shipping on orders over $50
Free 30-Day Returns

Key Features

  • Type Electric
  • Includes Adjustable Suction Pipe, Ball Valve Nozzle, Dispensing Hose, Street Elbow
  • Power Cord Length (Ft.) 3 ft
  • Duty Cycle 30 Minutes On/30 Minutes Off
  • Outlet 3/4 in
See all product information

Product Information

  • Brand Gpi
  • MFR # L5116
  • Zoro # G8544873
  • UPC #
    031401000214
  • Country of Origin United States
  • Category Oil Pumps

Dimensions

Power Cord Length (Ft.) 3 ft
Hose Length (Ft.) 8 ft
Manufacturers Warranty Length 1 yr
Cord Length 3 ft
Height Above Container 12 in
Hose Outside Dia. 3/4 in
For Container Size 10 gal, 500 gal
Suction Tube Length 40 in
Hose Length 8 ft

Details

Item Oil Transfer Pump
Type Electric
Includes Adjustable Suction Pipe, Ball Valve Nozzle, Dispensing Hose, Street Elbow
Duty Cycle 30 Minutes On/30 Minutes Off
Outlet 3/4 in
Application Antifreeze and non-Flammable Oil-Based Solvent, Hydraulic Fluid, Oils (Up to 90 weight), Waste Oil
Max. Temp. 140 Degrees F
Voltage 115/230 V AC
HP 1/2 hp
Body Material Aluminum
GPM Max. 4 gpm
Inlet 1
For Use With Oil (Up to 90 weight), Waste Oil, Hydraulic Fluid, Antifreeze and non-Flammable Oil-Based Solvent
Agency Compliance cULus
Max. Flow Rate 4 gpm
Suction Tube OD 1 in
For Media Type Anti-Freeze, Hydraulic Fluid, Oil
Hose Cover Material Nitrile
Rated Voltage 12V DC
Power Source Electric
Discharge Connection Type FNPT
Seal Material Buna-N
Includes Suction Tube Yes
Nozzle Operation Manual
Adapter Material Aluminum
Max. Outlet Pressure 50 psi
Motor Enclosure Explosion Proof
Variable Speed No
Food Grade No
Thermal Protection Yes
Includes Bung Adapter No
Includes Nozzle Yes
Suction Tube Material Polypropylene
Hose Tube Material Nitrile
Pump Connection Type FNPT
Mount Type Bung
Spout Material Poly
Max. Fluid Temp. 140 Degrees F
Metered No
Max. Viscosity 813 SUS
Nozzle Fluid Compatibility Gasoline
Adapter Connection Type MNPT
Frequency (Hz) 60 Hz
Motor HP 2/5 hp
Includes Spout Yes
Includes Discharge Hose Yes
Number of Phases 1
Self-Priming Yes
Min. Fluid Temp. 0 Degrees F
Runs Dry No
Diesel Exhaust Fluid Compatible No
Nozzle Material Thermoplastic
Explosion Proof Yes
Housing Material - Pumps Aluminum
Compatible Chemicals Anti-Freeze, Hydraulic Fluid, Oil
Motor RPM 1,800 RPM

Description

Oil Transfer Pump, Max. Outlet Pressure 50 psi, For Use With Oil (Up to 90 weight), Waste Oil, Hydraulic Fluid, Antifreeze and non-Flammable Oil-Based Solvent, Rated Voltage 12V DC, Suction Tube OD 1 in, Hose Length 8 ft, Suction Tube Length 40 in, Cord Length 3 ft, Includes Bung Adapter No, Runs Dry No, Nozzle Operation Manual, Thermal Protection Yes, Frequency (Hz) 60 Hz, Power Source Electric, Variable Speed No, Includes Discharge Hose Yes, Self-Priming Yes
