Shop GRACO

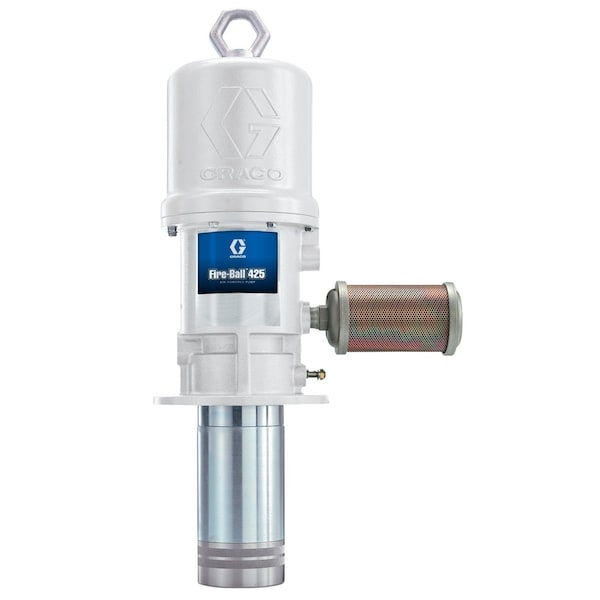

Air Drum Pump, 28.7 gpm, 540 psi, 3:1

  • Mfr # 237526

  • Zoro # G811363438

product price:  $7,152.99
/ea
Free Shipping & Returns

Key Features

For Use With
Chemicals
Includes
Bung Adapter
Power Source
Air
Wetted Materials
Aluminum, Buna-N, Polyurethane, Steel
Metered
No
See all product information
Get a 10% off coupon
Free 30-day returns Return Policy
Get 30 days to pay with Net 30 Apply Now
Unlock tax-exempt savings Add Tax Exemption

Specifications

Product Information

MFR #
237526
Zoro #
G811363438
UPC #
00633955320086
Country of Origin
United States

Dimensions

Air Inlet Size
1/2 NPT
For Container Size
5 gal, 15 gal, 30 gal, 55 gal, 275 gal
Air Inlet Connection Size
1/2 in

Details

For Use With
Chemicals
Item
Air Drum Pump
Includes
Bung Adapter
Power Source
Air
Wetted Materials
Aluminum, Buna-N, Polyurethane, Steel
Metered
No
Ratio
3:1
Discharge Connection Type
NPT
Discharge Tube Outlet OD
3/4 in
Housing Material - Pumps
Aluminum
Adapter Connection Type
FNPT
Features
Corrosion-Resistant, Durable, Extended Seal Life, Reduced Icing, Superior Sealing
Noise Level
82 dB
Compatible Chemicals
Automatic Transmission Fluid, Gear Oil, Motor Oil
Max. Flow Rate
28.7 gpm
For Media Type
Automatic Transmission Fluid, Gear Oil, Motor Oil
Duty Cycle
Continuous
Max. Air Pressure
180 psi
Max. Outlet Pressure
540 psi
Diesel Exhaust Fluid Compatible
No
Includes Nozzle
No
Air Consumption
3 cfm
Includes Discharge Hose
No
For Container Type
Drum, Tank
Maximum Air Pressure
180 psi
Static Protection
Not Groundable
Chemical Compatibility
Automatic Transmission Fluid, Gear Lube, Motor Oil
Maximum Outlet Pressure
540 psi
Mounting Bracket Included
No Mounting Bracket Included
Includes Spout
No
Wetted Material
Aluminum/Buna-N/Polyurethane/Steel
Variable Speed
Yes
Housing Material
Aluminum
Includes Suction Tube
No
Hazardous Location Class
Not Rated
Pump Technology
Piston
Container Cover Type Included
No Cover Included
Standards
NLGI #2 Grease
Adapter Connection Standard
Flange
Air Inlet Connection Type
NPT
Pressure Ratio
3:1
Maximum Flow Rate
28.7 gpm
Includes Bung Adapter
No
Meter Type Included
No Meter Included
Includes Follower Plate
No Follower Plate Included

Description

Air Drum Pump, Max. Air Pressure 180 psi, Spout Connection Size Not Applicable, Suction Tube Material Not Applicable, Discharge Connection Type NPT, Features Corrosion-Resistant, Durable, Extended Seal Life, Reduced Icing, Superior Sealing, Spout Length Not Applicable, Thermal Protection Not Applicable, Air Consumption 3 cfm, Hose Length Not Applicable, Variable Speed Yes, Includes Discharge Hose No, Noise Level 82 dB, Max. Viscosity Not Applicable, Adapter Connection Type FNPT

Restrictions

WARNING: Cancer and Reproductive Harm For more information go to www.P65Warnings.ca.gov
