Shop GRACO

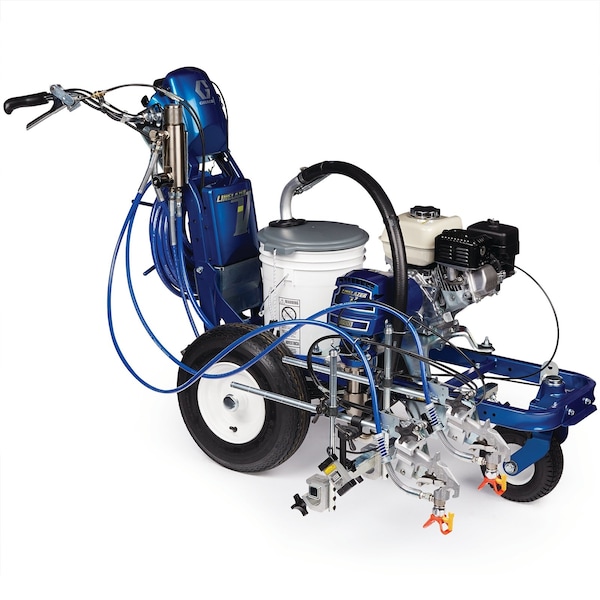

Airless Line Striper, Metal, 4 HP

  • Mfr # 17H453

  • Zoro # G4023498

product price:  $16,038.99
/ea
Additional $150.00 delivery surcharge applies per item.
See details

Key Features

Holds
5 gal
Power Source
Gas
HP
4 hp
For Use With
Traffic Paint
Guns Supported
2
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
17H453
Zoro #
G4023498
UPC #
755652320005
Country of Origin
United States

Dimensions

Overall Length
5 3/4 ft
Max. Tip Size
0.036 in
Line Width
2 in to 12 in
Max. Hose Length
50 ft
Overall Height
3 2/3 ft
Manufacturers Warranty Length
3 yr
Overall Width
34 1/4 in
Tip Size Included
0.019 in, 0.021 in
Compatible Tip Size - Maximum
0.04 in
Compatible Hose Length - Maximum
50 ft
Line Width - Maximum
12 in
Line Width - Minimum
2 in
Compatible Container Size
5 gal
Wire Rope Length
5 3/4 ft

Details

Item
Striping Machine
Holds
5 gal
Power Source
Gas
HP
4 hp
For Use With
Traffic Paint
Guns Supported
2
Second Gun Outlet
Yes
Includes
(2) LazerGuide 1700 Flex Plus Guns, (2) LineLazer RAC 5 319 Spray Tips, (2) LineLazer RAC 5 421 Spray Tips, (2) RAC 5 Tip Guards, 3/8 in x 3 ft BlueMax II Airless Whip Hose, 3/8 in x 50 ft BlueMax II Airless Hose, 4 oz TSL
Flow Rate
1.2 gpm
Max. Pressure
3,300 psi
Body Material
Stainless Steel
Paint Sprayer Sub-Brand
LineLazer V 3900 hp Automatic
Waterborne Compatible
Yes
Net Weight
240 lb
Engine Displacement
120 cc
Features
Adjustable Handle Bar
Application
Pavement Line Striping for Parking Lots, Airports, Construction Zones, Intersections, Roads
Product Type
Walk-Behind Line Striper
Series
3900
Flow Rate - Maximum
1.3 gpm
Horsepower
4 hp
Compatible Surface Material
Pavement, Turf
Spray Tip Number
319, 421
Tank Capacity
0.66 gal
Weight
240 lb
Application Method
Airless Spray
Operating Pressure - Maximum
3,300 psi
Compatible Fluid Type
Paints
Number of Guns Supported
2
Gun Activation
Automatic
Power Source - TS Only
Gas

Description

Striping Machine, LineLazer V 3900 hp Automatic, Power Source Gas, 4 hp HP, Guns Supported 2, Second Gun Outlet Yes, Max. Tip Size 0.036 in, Line Width 2 in to 12 in, Flow Rate 1.2 gpm, Max. Pressure 3,300 psi, Body Material Stainless Steel, Max. Hose Length 50 ft, Engine Displacement 120 cc, Application Pavement Line Striping for Parking Lots, Airports, Construction Zones, Intersections, Roads, Net Weight 240 lb, Overall Height 3 2/3 ft, Overall Length 5 3/4 ft, Overall Width 34 1/4 in
