  9. Monocrystalline Solar Panel Kit, 200 W, 20.3V DC, 9.85 A, 36 Cells, 4mm PV
This item is Discontinued.
Grape Solar Monocrystalline Solar Panel Kit, 200 W, 20.3V DC, 9.85 A, 36 Cells, 4mm PV GS-600-KIT-MPPT

Monocrystalline Solar Panel Kit, 200 W, 20.3V DC, 9.85 A, 36 Cells, 4mm PV (Discontinued)

  • Mfr # GS-600-KIT-MPPT
  • Zoro # G600422667
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
GS-600-KIT-MPPT
Zoro #
G600422667
UPC #
817732013198
Country of Origin
Multiple

Details

Item
Solar Panel Kit
Maximum Power Point
200 W
Cell Type
Monocrystalline
Voltage @ Maximum Power Point
20.3V DC
Current @ Maximum Power Point
9.85 A
Number of Cells
36
Connector
4mm PV
Short Circuit Current
10.33 A
Battery Type
Lithium-Ion
Includes

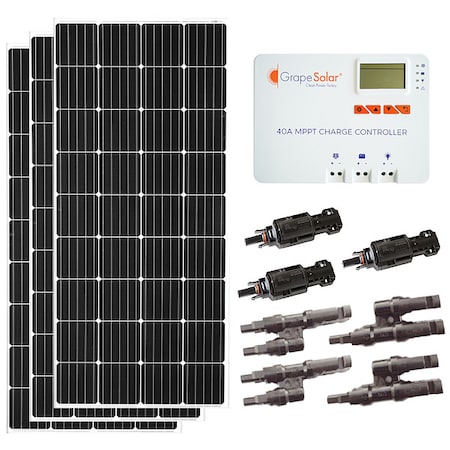

(3) Grape Solar GS-Star-200W 200-Watt Monocrystalline Solar Panels, 40A Grape Solar Zenith MPPT Charge Controller, Cables
For Use With
12-Volt Batteries, Boats, Deep Cycle Batteries including Lithium-Ion, Off-Grid Power Applications Including Cabins, Operating LED Lights, RVs, Small Electronic Devices, Small Pumps
Mounting Hardware
Not Included
Enclosure Material
Aluminum
Features
Anodized Frame, Monocrystalline Panels, Weatherproof Panel
Modes of Operation
MPPT Charge Controller
Weight
107 lb
Standards
CSA Certified, UL Listed
Number of Solar Panels
3
Open Circuit Voltage
24.35 V
Rated Snow/Wind Load
50 lb/sq ft
Battery Voltage
12 V DC
Solar Panel Frame Material
Aluminum
Compatible with Series
GS-Star
Minimum Operating Temperature
-40 Degrees C
Manufacturer Warranty
5 yr
Includes Mounting Hardware
No
Maximum Operating Temperature
85 Degrees C
Temperature Coefficient of PM
-0.41%/ Degrees C
Total System Power Output
600 W
Normal Operating Cell Temperature (NOCT)
45 Degrees C
Includes Battery
No
Panel Max. Power Point Current
9.85A
Nominal Output Power
600 W
Panel Max. Power Point Voltage
20.3V DC

Description

Solar Panel Kit, Maximum Power Point 200 W, Total System Power Output 600 W, Battery Capacity Not Applicable, Includes Battery No, Number of Cells 36, Voltage @ Maximum Power Point 60.93 V, Current @ Maximum Power Point 9.85 A, Compatible with Series GS-Star, Number of Solar Panels 3, Mounting Type Ground, Includes (3) Grape Solar GS-Star-200W 200-Watt Monocrystalline Solar Panels, 40A Grape Solar Zenith MPPT Charge Controller, Cables, Cell Type Monocrystalline, Battery Type Lithium-Ion
