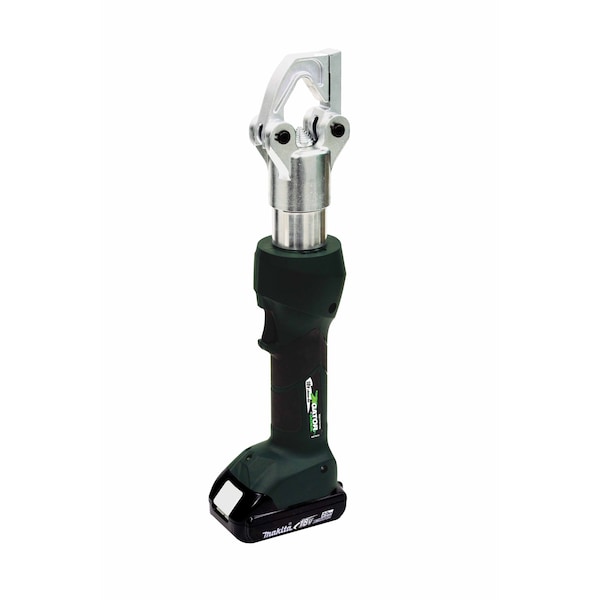

Greenlee 15-3/4" Cordless Crimping Tool EK6IDLX11 - main

15-3/4" Cordless Crimping Tool

  • Mfr # EK6IDLX11

  • Zoro # G8092491

product price: $3,533.99
/ea
Free Shipping & Returns

Key Features

Voltage
18 V
Includes
(1) Battery, (1) 120V Charger
Crimping Force
6 ton
Tool Weight
5.5 lb
Capacity Copper Lug - Crimper
8 AWG to 500 kcmil
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
EK6IDLX11
Zoro #
G8092491
UPC #
783310610793
Country of Origin
Germany

Dimensions

Overall Length
15.75 in
Overall Height
15 in
Overall Width
2.95 in
Maximum Compatible Wire/Cable Diameter
500 kcmil
Minimum Compatible Wire/Cable Diameter
8 AWG

Details

Item
Cordless Crimping Tool
Voltage
18 V
Includes
(1) Battery, (1) 120V Charger
Crimping Force
6 ton
Tool Weight
5.5 lb
Capacity Copper Lug - Crimper
8 AWG to 500 kcmil
Capacity
8 AWG to 500 kcmil Cu, 1/0 AWG to 350 kcmil Al; 8 AWG to 350 kcmil CuDLO, 8 AWG to 373.3 kcmil Cu
Crimping Die Series
Dies Not Required
Handle Material
Rubber Grip
Max. Crimping Force - Crimper
6 ton
Corded/Cordless
Cordless
Series
Gator
Auto-Cycle
Yes
Corded/Banded
Cordless
Features
PVC Coated Head for Brush Protection, Single Trigger Operation for Controlling All Tool Functions, Two-Stage Telescopic Ram Design Identifies Correct Pressure to Apply
Capacity Aluminum Lug - Crimper
1/0 AWG to 350 kcmil
Handle Type
Inline
Rotating Angle (Deg.)
350
Battery Type
Li-Ion
Cordless Tool Battery Type
Li-Ion
Head Style - Crimper
Latching
Battery Capacity
2 Ah
Application
6 Ton Crimping
Includes - Cordless Crimper
(1) Battery, (1) Battery Charger - 120V
Primary Application - Crimping
Electrical Wire and Cable Crimping
Standards
cULus Listed
Power Source
Cordless
Includes Charger
Yes
Minimum Aluminum Lug Crimping Capacity
0 AWG
Compatible Connector Type
Aluminum Lug, Copper Lug
Includes Dies
Dies Not Required
Crimping Capacities
350 kcmil Aluminum, 500 kcmil Copper, Standard Strand
Maximum Copper Lug Crimping Capacity
500 kcmil
Crimp Head Type
Dieless
Head Style
Latching
Minimum Copper Lug Crimping Capacity
8 AWG
Number of Batteries Included
2
Includes Batteries
Yes
Grip Material
Rubber
Head Rotation
350 Degrees
Wireless Tool Tracking
No
Cordless Tool Kit Contents
Charger, (2) Batteries, Bare Tool
Battery Platform
Makita 18V LXT
Number of Dies Included
0
Compatible Wire/Cable Type
Aluminum Cable, Copper Cable
Tool Series
Gator
Maximum Aluminum Lug Crimping Capacity
350 kcmil

Description

Cordless Crimping Tool, Battery Platform Makita 18V LXT, Maximum Copper Lug Crimping Capacity 500 kcmil, Minimum Copper Lug Crimping Capacity 8 AWG, Maximum Aluminum Lug Crimping Capacity 350 kcmil, Minimum Aluminum Lug Crimping Capacity 0 AWG, Crimping Force 6 ton, Compatible Die Type Not Applicable, Head Style Latching, Number of Dies Included 0, Die Sizes included Not Applicable, Handle Type Inline, Cordless Tool Kit Contents Charger, (2) Batteries, Bare Tool, Battery Capacity 2 Ah
