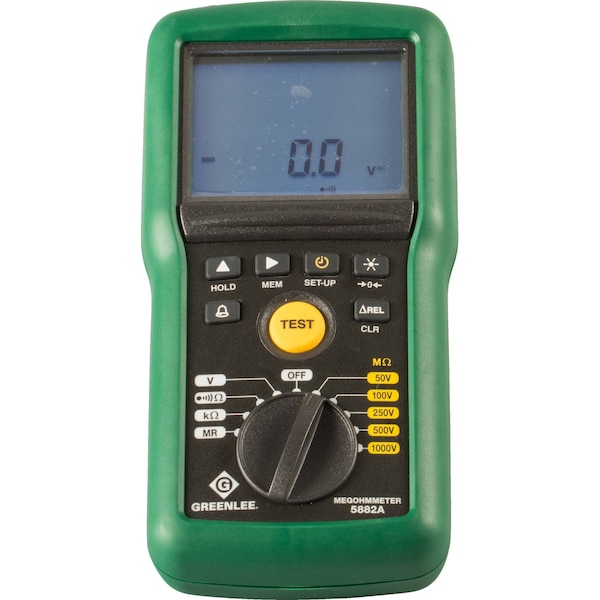

Greenlee Battery Operated Megohmmeter, LCD Display 5882A - main

Battery Operated Megohmmeter, LCD Display

  • Mfr # 5882A

  • Zoro # G7612843

product price:  $1,039.99
/ea
Free Shipping & Returns

Key Features

Power Source
Battery
Includes
Alligator Clip, Carrying Case with Shoulder Strap, Test Probes
Insulation Resistance Range
10 kiloohm to 200 gigohm
Display
LCD
Resistance Range
0 to 999 kilohm
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
5882A
Zoro #
G7612843
UPC #
783310071549
Country of Origin
France

Dimensions

Tool Length
8.3 in
Tool Width
4.3 in
Manufacturer Warranty Length
Limited Lifetime
Battery Size
AA
Tool Height
2.4 in

Details

Item
Megohmmeter
Power Source
Battery
Includes
Alligator Clip, Carrying Case with Shoulder Strap, Test Probes
Insulation Resistance Range
10 kiloohm to 200 gigohm
Display
LCD
Resistance Range
0 to 999 kilohm
Accuracy
+/- 3% (Capacitance Between 0 and 5 Micro Farad In Parallel to R Can Add +/- 10% to Error)
Features
Calculations (Automatic), Delta Reading, Hand Held, Compact Lightweight, Hazardous Voltage Alert (Icon) if Voltage is Greater Than 70 volts, Measurement Tool tests Continuity, Resistance and Frequency Measurements, Potential Index and Dielectric Absorption Ratios, Programmable Alarms, Standby Mode (automatic) Saves Battery Power
Auto Ranging
No
Capacitance Range
No
Auto Power Off
Yes
Output Test Voltage
50/100/250/500/1000V DC
Minimum Operating Temperature
-4 Degrees F
Backlit Digital Display
Yes
Display Screen Type
LCD
Data Logger
Yes
Test Voltage
1,000V DC, 100V DC, 250V DC, 500V DC, 50V DC
Standards
IEC 61557
Parameters Measured
Resistance
Maximum AC Voltage Measured
9 V
Maximum Operating Temperature
131 Degrees F
Includes Batteries
Yes
Operating Voltage
600V AC
CAT Safety Rating
CAT IV 600V
Testing Functions
Insulation Resistance
Bluetooth Compatible
No
Capacitance Auto Discharge
Yes
Number of Batteries Required
6
Minimum AC Voltage Measured
6.6 V
Minimum Insulation Resistance
10 kiloohm
Insulation Resistance Resolution
10 kilohm to 200 gigaohm
Display Type
Digital
Maximum Insulation Resistance
200 gigohm
Maximum Operating Temperature
131 Degrees F
Leakage Current Range
N/A - data not found
Alert Type
Digital Display, Audible
PI/DAR Testing
Yes
Insulation Limit Alarm
Yes
Minimum DC Voltage Measured
50 V
Greater Than 30V Warning
Yes
Dustproof
No
IP Rating
Not Rated
Timed Ramp Voltage Test
No
Installation Tester Socket Region
US
Maximum Ground Resistance Measurement
4 megaohm
Test Current
N/A - data not found
Pass/Fail Selection Limits
No
Instrument Style
Handheld
Maximum DC Voltage Measured
700 V
Calibration Certificate Included
No Certification Included
Minimum Ground Resistance Measurement
0 megaohm
USB Data Download Included
No
Remote Test Probe Included
No
Resistance Accuracy
N/A - data not found
Waterproof
No
Live Circuit Voltage Measurement - Maximum
1 kV
Live Circuit Voltage Measurement - Minimum
50 V
Input Impedance
N/A - data not found

Description

Megohmmeter, Backlit Digital Display Yes, Bluetooth Compatible No, CAT Safety Rating CAT IV 600V, Capacitance Auto Discharge Yes, Display Type Digital, Dustproof No, Greater Than 30V Warning Yes, Includes Alligator Clip, Carrying Case with Shoulder Strap, Test Probes, Insulation Limit Alarm Yes, Maximum Insulation Resistance 200 gigohm, Minimum Insulation Resistance 10 kiloohm, PI/DAR Testing Yes, Parameters Measured Insulation Resistance, Pass/Fail Selection Limits No, Power Source Battery
