Shop All Cable Pullers
Greenlee

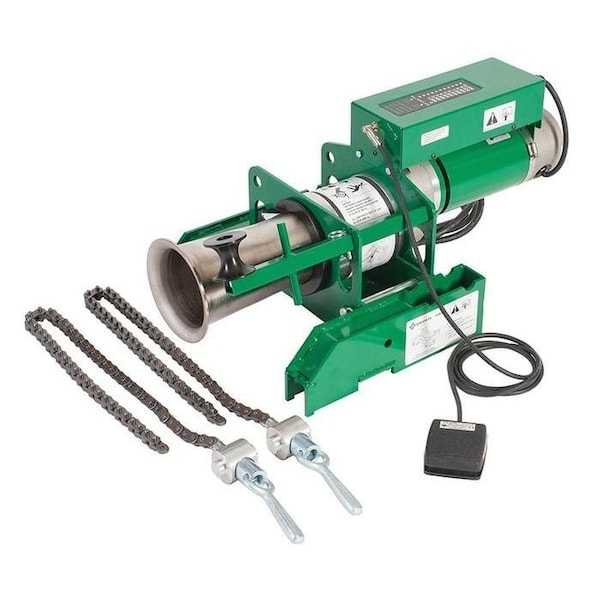

Cable Puller, 8000 lb, 120V, w/Chain Mount

product price: $8,871.99
/ea
Item requires special delivery charges. A $250.00 per item surcharge will be applied.
Free 30-Day Returns

Key Features

  • Pulling Force (Lb.) 10,000
  • Cable Capacity 1200 ft with (2) 90 Degrees Bends, 3 x 1000 MCM Copper Cables, 4 x 500 MCM Copper Cables, 4 x 750 MCM Copper Cables, 750 ft with (4) 90 Degrees Bends, 800 ft with (3) 90 Degrees Bends
  • Features Removable Foot Pedal
  • Use With 7/8 in dia (22.2mm) Double-Braided Polyester Composite Rated at 32,000 lb (142kN) min Breaking Strength
  • Function For Cable Pulling
See all product information

Product Information

Dimensions

Overall Width 26 in
Overall Height 6.75 in
Overall Length 11.5 in
Required Pulling Rope Diameter 7/8 in

Details

Item Cable Puller
Pulling Force (Lb.) 10,000
Cable Capacity 1200 ft with (2) 90 Degrees Bends, 3 x 1000 MCM Copper Cables, 4 x 500 MCM Copper Cables, 4 x 750 MCM Copper Cables, 750 ft with (4) 90 Degrees Bends, 800 ft with (3) 90 Degrees Bends
Features Removable Foot Pedal
Use With 7/8 in dia (22.2mm) Double-Braided Polyester Composite Rated at 32,000 lb (142kN) min Breaking Strength
Function For Cable Pulling
Voltage 115V AC
Amps 20 A
Includes Conduit Chain Mount, Force Gauge
Motor Two Speed
Application Cable Pulling
Maximum Continuous Pulling Force 6,500 lbf
Power Source Corded
Tool Type Cable Puller
Required Pulling Rope Type Double-Braided Polyester Composite
Minimum Pulling Speed at Maximum Pulling Force 7 fpm
Phase Single-Phase
Maximum Momentary Pulling Force 10,000 lbf
Current 20 A
Frequency 1 Hz
Horsepower 1 1/2 hp
Tool Weight 88 lb
No Load Pulling Speed 16 fpm

Description

Cable Puller, Tool Type Cable Puller, Maximum Momentary Pulling Force 10,000 lbf, No Load Pulling Speed 16 fpm, Boom Length Not Applicable, Horsepower 1 1/2 hp, Voltage 115V AC, Mounting Type Chain Mount, Current 20 A, Tool Weight 88 lb, Application Cable Pulling, Cable Capacity 1200 ft with (2) 90 Degrees Bends, 3 x 1000 MCM Copper Cables, 4 x 500 MCM Copper Cables, 4 x 750 MCM Copper Cables, 750 ft with (4) 90 Degrees Bends, 800 ft with (3) 90 Degrees Bends, Features Removable Foot Pedal
