Shop GREENLINE

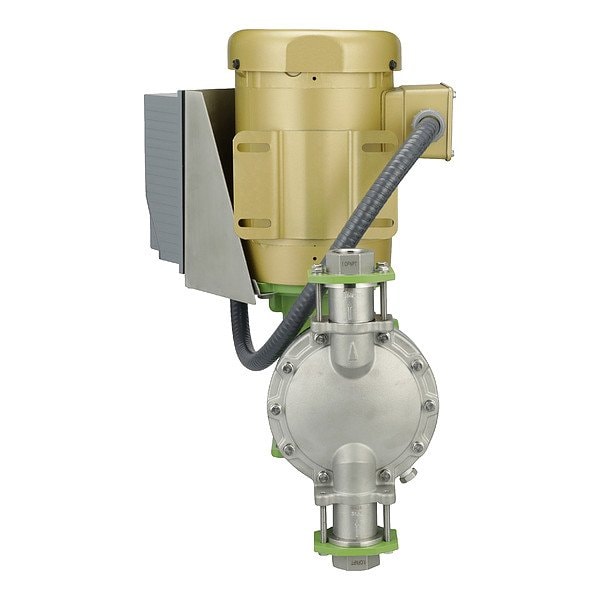

ChemicalMeteringPump, 988.8gpd, PVDFHead

  • Mfr # DM4BVAG

  • Zoro # G121685053

product price:
$
5,785.99
/ea
Free Shipping & Returns

Key Features

Number of Feeds
1
Wire Rope Length
13.3 in
Nameplate Voltage
115/230V AC
Ambient Temperature (Maximum)
113 Degrees F
Motor Thermal Protection
Auto
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
DM4BVAG
Zoro #
G121685053
UPC #
-
Country of Origin
China

Dimensions

Wire Rope Length
13.3 in
Discharge Connection Size
1 in
Intake Connection Size
1 in
Overall Height
18.3 in
Overall Width
7.6 in
Overall Length
13.3 in
Length
13.3 in

Details

Number of Feeds
1
Nameplate Voltage
115/230V AC
Ambient Temperature (Maximum)
113 Degrees F
Motor Thermal Protection
Auto
Stroke Rate (Maximum)
116 stroke/min
Flow Rate (Maximum)
988.8 gpd
Seal Material
PTFE
Media Temperature (Maximum)
113 Degrees F
Intake Connection Type
FNPT
Turn Down Ratio
10:1
Item
Chemical Metering Pump
Horsepower (Maximum)
1 hp
Control Programs
Manual Control
Operating Pressure (Maximum)
145 psi
Discharge Connection Type
NPT
Priming
Manual
Viscosity (Maximum)
1,000 cps
Pump Drive Type
Electric Motor
Phase
Three
Frequency
60 Hz
Reproducibility
+/-2.0%
Ambient Temperature (Minimum)
32 Degrees F
Head Material
PVDF
Fitting Material
316 Stainless Steel
Flow Rate (Minimum)
76.8 gpd
Housing Material
Aluminum
Standards
CE
Duty Cycle
Continuous
Diaphragm Material
PTFE
Check Ball Material
316 Stainless Steel
Degassing Valve Included
No
Chemical Compatibility

Description

Chemical Metering Pump
