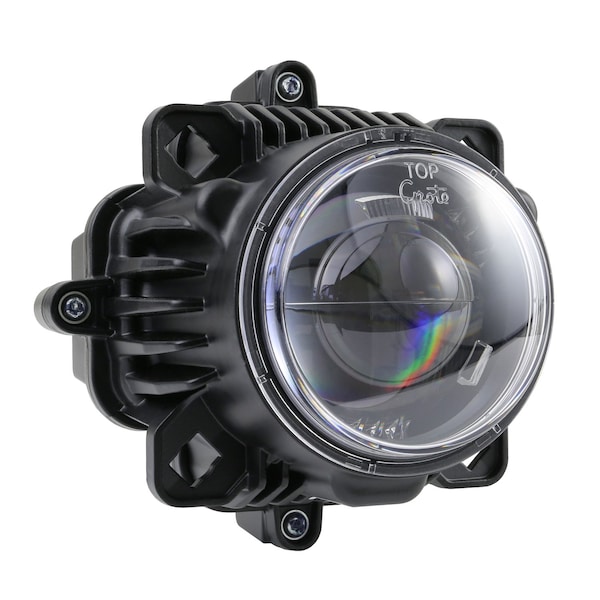

Grote Bi-Led 90Mm Dt R149 64X01 - main

Bi-Led 90Mm Dt R149

  • Mfr # 64X01

  • Zoro # G910877249

product price:  $302.99
/ea
Free Shipping & Returns

Key Features

Features
9V to 32V Multi-Volt Design, Compact Lamp Profile to Fit Most Existing Applications, Hard-Coated, High-Impact Polycarbonate Lens, IP69K Rated for Maximum Protection Against Dust and Moisture Intrusion, Mounting System with Included Adjustment Rods Designed to Replace Standard 90 mm Halogen Headlamps
Lighting Technology
LED
Includes
Adjustment Rod
Lens Color
Clear
Housing Color
Black
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
64X01
Zoro #
G910877249
UPC #
089373022680
Country of Origin
Germany

Dimensions

Overall Height
6 in

Details

Item
Bi-LED 90mm DT R149
Features
9V to 32V Multi-Volt Design, Compact Lamp Profile to Fit Most Existing Applications, Hard-Coated, High-Impact Polycarbonate Lens, IP69K Rated for Maximum Protection Against Dust and Moisture Intrusion, Mounting System with Included Adjustment Rods Designed to Replace Standard 90 mm Halogen Headlamps
Lighting Technology
LED
Includes
Adjustment Rod
Lens Color
Clear
Housing Color
Black
Voltage
9 to 32V DC
Wattage
23 W, 47 W
Current
1.6 A @ 14V (Low Beam), 3.2 A @ 14V (High Beam)
Housing Material
Powder-Coated Aluminum
Heated
Non-Heated
Lens Material
Hard-Coated Polycarbonate
Electrical Connection
Integrated 4-Pin DT Connector
Standards
ECE R149 Asymmetric (LH Drive/RH Traffic), RoHS Compliant
Light Type
Headlight
Includes Electrical Connection
Electrical Connection Included
Minimum Operating Temperature
-40 Degrees C
Lamp Life
20,000 hr
Maximum Operating Temperature
85 Degrees C
IP Rating
IP69K
Maximum Brightness
1,300 lm
Minimum Brightness
650 lm
Mount Style
Recessed
Shape
Round
Beam Type
High Beam, Low Beam

Description

Bi-LED 90mm DT R149, Light Type Headlight, Lighting Technology LED, Heated Non-Heated, Beam Type High Beam, Low Beam, Mount Style Recessed, Includes Electrical Connection Electrical Connection Included, Electrical Connection Integrated 4-Pin DT Connector, Shape Round, Overall Height 6 in, Housing Material Powder-Coated Aluminum, IP Rating IP69K, Current 1.6 A @ 14V (Low Beam), 3.2 A @ 14V (High Beam)
