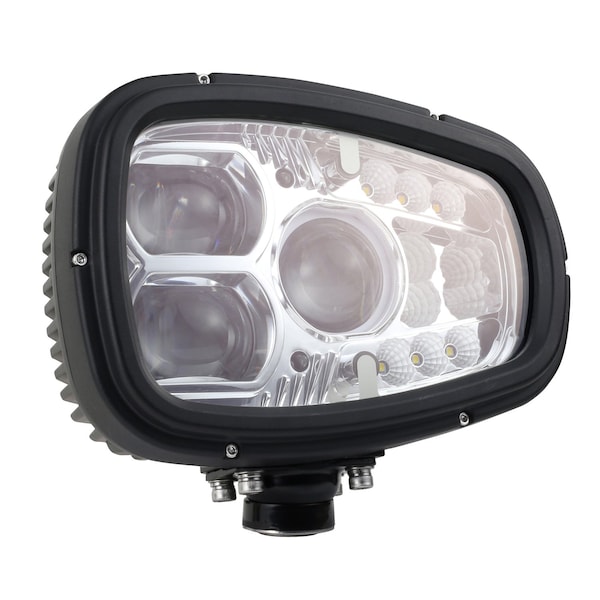

Led Head Lamp Assembly
Mfr # 84631-5
Zoro # G110877629
product price:Â
$
279.99
/ea
Free Shipping & Returns
Key Features
Features
Built to Resist Hours of Continuous 6G Vibration, Die-Cast Aluminum Housing and Heavy-Duty Lens are Ideal for the Harshest Environments, Integrated Sensor Detects Temperature of Lens to Activate Heating Element, Versatile, Multi-Volt Design Features Reverse Voltage Protection
Lighting Technology
LED
Includes
Integrated 6-Pin DT Connector with Blunt-Cut Adapter, LED Turn Signal
Voltage
12 to 30V
Wattage
2 W, 6 W, 15 W, 38 W
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Details
- MFR #
- 84631-5
- Zoro #
- G110877629
- UPC #
- 089373019734
- Country of Origin
- China
- Item
- LED Head Lamp Assembly
- Features
- Built to Resist Hours of Continuous 6G Vibration, Die-Cast Aluminum Housing and Heavy-Duty Lens are Ideal for the Harshest Environments, Integrated Sensor Detects Temperature of Lens to Activate Heating Element, Versatile, Multi-Volt Design Features Reverse Voltage Protection
- Lighting Technology
- LED
- Includes
- Integrated 6-Pin DT Connector with Blunt-Cut Adapter, LED Turn Signal
- Voltage
- 12 to 30V
- Wattage
- 2 W, 6 W, 15 W, 38 W
- SAE Lens Code
- LB3V, UB3
- Mount Type
- Swivel
- Minimum Brightness
- 750 lm
- Lens Material
- Glass
- Light Type
- Snowplow Light
- Current
- 3.2 A @ 12V (Low Beam), 5.1 A @ 12V (High Beam)
- Housing Material
- Aluminum
- Standards
- FMVSS 108, HB: SAE UB3, LB: SAE LB3V
- IP Rating
- IP67
- Heated
- Heated
- Maximum Brightness
- 1,400 lm
- Manufacturer Warranty
- 2 yr
- Beam Type
- High Beam, Low Beam
- Vehicle Side
- Driver Side
- Includes Electrical Connection
- Electrical Connection Included
- Electrical Connection
- 6-Pin DT Connector
Description
LED Head Lamp Assembly, Light Type Snowplow Light, Lighting Technology LED, Heated Heated, Vehicle Side Driver Side, Beam Type High Beam, Low Beam, Includes Electrical Connection Electrical Connection Included, Mount Type Swivel, Electrical Connection 6-Pin DT Connector, Overall Height 6 13/16 in, Overall Width 8 7/16 in, Overall Depth 4 3/4 in, Housing Material Aluminum, IP Rating IP67, Current 3.2 A @ 12V (Low Beam), 5.1 A @ 12V (High Beam)
