Grote

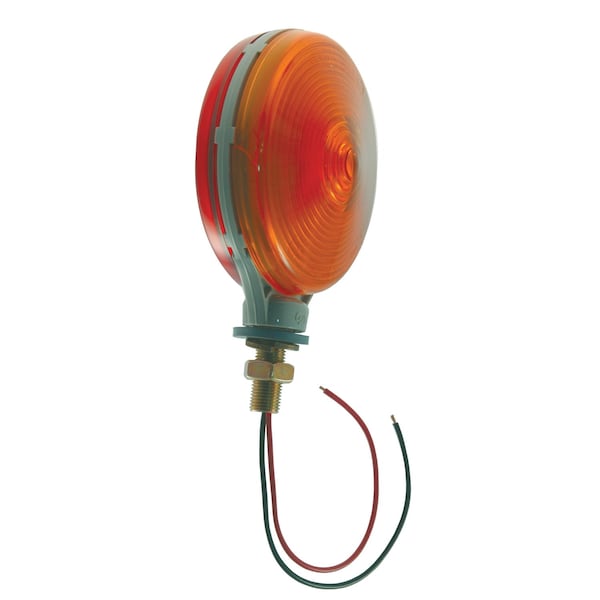

Turn Lamp, DoubleFace, ThinLine, Red/Yellow

product price: $13.99
/ea
Free Shipping on orders over $50
Free 30-Day Returns

Key Features

  • Volt Bulb 12
  • Used For Replacement
  • Sub-Category Stop-Turn-Tail Lights
  • Color Red/Yellow
  • Manufacturer Warranty - Vehicle Lighting 1 Year Warranty
See all product information

Product Information

Dimensions

Diameter 4-1/4"
Depth 4-1/2"
Length - Vehicle Lighting 4 1/4 in
Width - Vehicle Lighting 2 5/16 in
Height - Vehicle Lighting 4 3/4 in
Diameter - Vehicle Lighting 4 1/4 in
Overall Height 4 3/4 in
Overall Diameter 4 1/4 in
Overall Depth 2 5/16 in

Details

Volt Bulb 12
Used For Replacement
Sub-Category Stop-Turn-Tail Lights
Color Red/Yellow
Manufacturer Warranty - Vehicle Lighting 1 Year Warranty
Type Thin Line
Standards FMVSS 108
Item Double Face Lamp
Mounting - Vehicle Lighting Permanent
Lighting Technology - Vehicle Lighting Incandescent
Termination Type Hardwired
Lamp Type incandescent
Shape Round
Lens Color - Vehicle Lighting Red, Yellow
Wiring Connection - Vehicle Lighting Pigtail
Material DURAMOLD/Acrylic
Current Rating 0.59 to 2.1A
Post 1/2 20 x 1
Lens Shape - Vehicle Lighting Round
Lens Material Acrylic
Features Snap-On Lens, Molded-in Baffle and O-Ring
Lens Color Red, Amber
Housing Material Polycarbonate
Lighting Technology Incandescent
Mount Style Surface
Light Type Stop, Turn, and Tail Combination Light
Compatible Electrical Connection Manufacturer Model Number 68130, 68170
Mount Type Pedestal
Current 0.59 to 2.1 A
Electrical Connection Blunt Cut Wires
Installation Type Permanent
Manufacturer Warranty 1 yr

Description

Double Face Lamp, Lighting Technology Incandescent, Light Type Stop, Turn, and Tail Combination Light, Lens Color Red, Amber, Shape Round, Overall Diameter 4 1/4 in, Overall Height 4 3/4 in, Overall Width Not Applicable, Overall Depth 2 5/16 in, Current 0.59 to 2.1 A, Electrical Connection Blunt Cut Wires, Compatible Electrical Connection Grainger Part Number 2CWZ9, 2CXA3, Compatible Electrical Connection Manufacturer Model Number 68130, 68170, Mount Type Pedestal, Mount Style Surface
