  11. Work Light, Square, LED, 1200 lm, 12/24VDC
Shop All Automotive Work & Scene Lighting
Grote

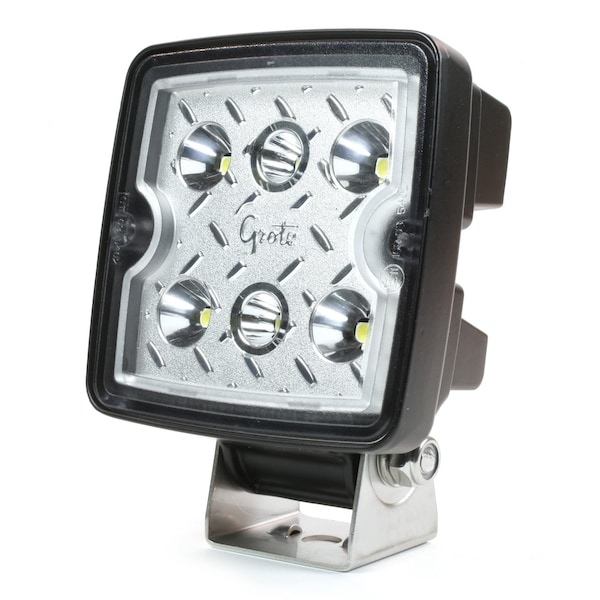

Work Light, Square, LED, 1200 lm, 12/24VDC

product price: $128.99
/ea
Free Shipping & Returns
Free Shipping on orders over $50
Free 30-Day Returns

Key Features

  • Width 3-15/16"
  • Current Drawn 1.4 A @12V, 0.7 A @24V
  • Application Exterior
  • Voltage 12 to 24V DC
  • Height - Vehicle Lighting 5 in
See all product information

Product Information

Dimensions

Width 3-15/16"
Height - Vehicle Lighting 5 in
Width - Vehicle Lighting 2 1/4 in
Length 2-21/64"
Length - Vehicle Lighting 4 in
Overall Height 4 15/16 in
Overall Depth 2 5/16 in
Overall Width 2 1/4 in

Details

Current Drawn 1.4 A @12V, 0.7 A @24V
Application Exterior
Voltage 12 to 24V DC
Includes Mounting Hardware
Housing Material Aluminum
Lens Material Polycarbonate
Lens Shape - Vehicle Lighting Square
Light Output 1,200 lm
Base Material Aluminum
Lumens - Vehicle Lighting 1,200 lm
Standards FMVSS J575E
Lens Design Square
Item Vehicle Work Light
Housing Color Black
Features Water-Resistant
Mounting - Vehicle Lighting Bracket
Lens Color Clear
Lighting Technology - Vehicle Lighting LED
Wiring Connection - Vehicle Lighting Pigtail
Color Black
Lamp Type LED
Rating 12V/1.4A to 24V /0.7A
Material polycarbonate
Operating Temp. -40 Degrees to 122 Degrees F
Lamp Life (Hours) 40,000 hr.
Power Source Hard Shell Superseal
Compatible Electrical Connection Manufacturer Model Number 68580
Head Shape Square
Installation Type Removable
Mount Style Surface
IP Rating IP69K
Wattage 17 W
Beam Type Flood
Series Trilliant Cube
Compatible Vehicle Type Universal
Vehicle Class 3, 4, 5, 6, 7, 8, 9, 10, 11, 12, 13
Includes Electrical Connection Electrical Connection Not Included
Lighting Technology LED
Maximum Brightness 1,200 lm
Use Location Exterior
Electrical Connection Pigtail
Mount Type Bracket
Current 0.7 to 1.4 A

Description

Vehicle Work Light, IP Rating IP69K, Beam Type Flood, Overall Depth 2 5/16 in, Installation Type Removable, Mount Type Bracket, Operating Voltage 12-24V DC, Lighting Technology LED, Overall Diameter Not Applicable, Overall Height 4 15/16 in, Head Shape Square, Overall Width 2 1/4 in, Electrical Connection Pigtail, Vehicle Class 3, 4, 5, 6, 7, 8, 9, 10, 11, 12, 13, Standards FMVSS J575E, Includes Electrical Connection Electrical Connection Not Included, Compatible Vehicle Type Universal
