  11. Filter/Regulator, 1/2inNPT, 106cfm, 215 psi
Shop All Filter, Regulator, Lubricator
Groz

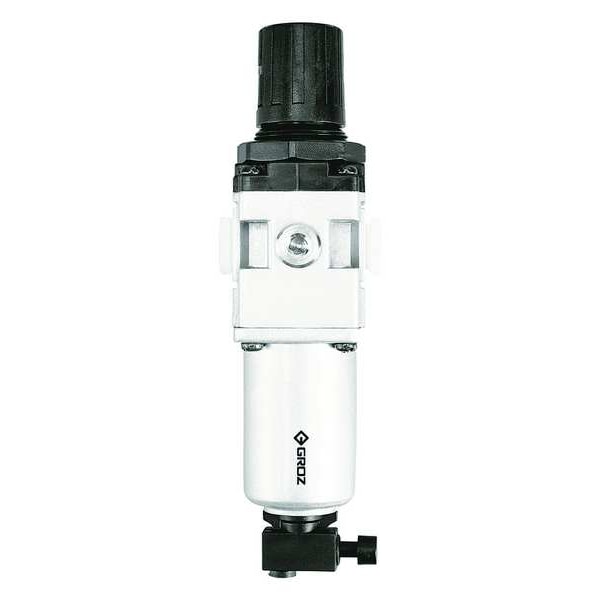

Filter/Regulator, 1/2inNPT, 106cfm, 215 psi

original price: $88.19
9% off
new price: $79.39
/ea
Free Shipping & Returns
Free Shipping on orders over $50
Free 30-Day Returns

Key Features

  • Includes (1) Filter-Regulator Combination
  • Pipe Size 1/2" NPT
  • Max. Pressure 215 psi
  • Bowl Size 3 oz.
  • Overall Height 13 in
See all product information

Product Information

Dimensions

Pipe Size 1/2" NPT
Bowl Size 3 oz.
Overall Height 13 in
Connection Size - Air Treatment 1/2 in NPT
Overall Width 2 3/4 in
Size - Air Treatment Standard
Size Standard
Gauge Port Size 1/8 in
Bowl Size - Air Treatment 3.0 oz
Overall Depth 2 3/4 in
Pressure Gauge Port Size 1/8 in
Air Outlet Size 1/2 in
Air Inlet Size 1/2 in

Details

Item Filter-Regulator
Includes (1) Filter-Regulator Combination
Max. Pressure 215 psi
Drain Type Semi-Automatic
Filter Rating 40 micron
For Removal Of Dirt, Dust, Moisture
Item - Filter-Regulators Filter-Regulator
Adjustment Range 7 to 145 psi
Bowl Material Aluminum
Max. Flow - Air Treatment 106 cfm
Max. Incoming Pressure - Air Treatment 215 psi
Adjustment Range - Air Treatment 7 to 145 psi
Bowl Material - Air Treatment Aluminum
Max. Flow 106 cfm
Max. Temp. 140 Degrees F
Filter Rating - Air Treatment 40 micron
Replaces Dynaflo 0411038, Jupiter 82218231
Adjustment Knob Yes
Drain Included Yes
Series Standard Duty
Body Material Aluminum
Adjustment Mechanism Knob
Pressure Drop 17 psi
Filter Bowl Guard Included No
Filter Bowl Material Metal
Maximum Regulated Pressure 145 psi
Weight 3.572 lb
Seal Material Nitrile
Adjustment Location Top
Number of Air Outlets 1
For Substance Type Air
Minimum Operating Temperature 32 Degrees F
Air Inlet Gender Female
Regulator Type Relieving
Differential Pressure Indicator Included No
Pressure Gauge Port Type NPT
System Location Air Line
Maximum Flow Rate 106 cfm
Modular Connection Modular Connection
Maximum Flow @ 100 psi 106 cfm
Sight Gauge Included Yes
Drain Part Compatibility SC2006
Pressure Gauge Included No
Maximum Operating Pressure 220 psi
Air Flow Direction Left to Right
Duty Rating Standard Duty
Adjustment Mechanism Material Acetal
Filter Element Material Bronze
Pressure Gauge Port Gender Female
Standards RoHS Compliance
Filter Bowl Capacity 3 oz
For Fluid Type Compressed Air
ISO Class 6
Number of Air Inlets 1
Air Inlet Type NPT
Air Outlet Gender Female
Air Outlet Type NPT
Minimum Regulated Pressure 7 psi
Filter Type Particulate
Maximum Operating Temperature 140 Degrees F

Description

Filter-Regulator, Filter Bowl Material Aluminum, Air Inlet Size 1/2 in, Air Inlet Type NPT, Maximum Flow Rate 106 cfm, Filter Rating 40 micron, Filter Type Particulate, Maximum Operating Pressure 220 psi, Drain Type Semi-Automatic, Pressure Gauge Included No, Body Material Aluminum, Overall Width 2 3/4 in, Series Standard Duty, Adjustment Location Top, Adjustment Mechanism Knob, Adjustment Mechanism Material Acetal, Air Flow Direction Left to Right, Air Inlet Gender Female
