  9. Booster Pump, 7.5 hp, 200/240V AC
No Product Image Available

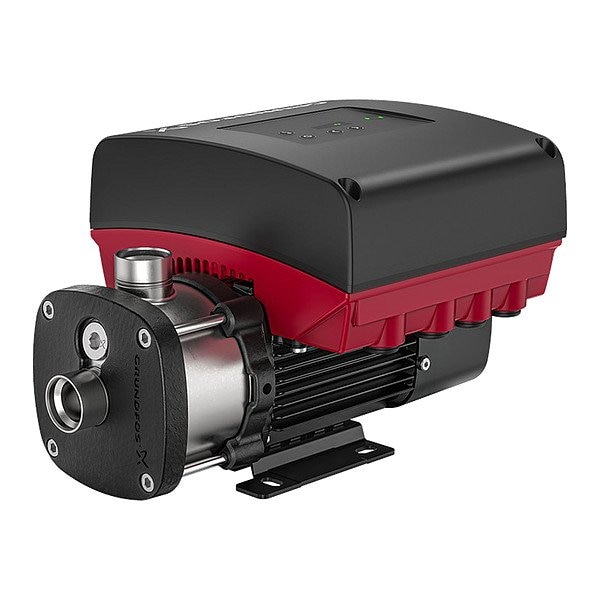

Booster Pump, 7.5 hp, 200/240V AC

  • Mfr # 99381547

  • Zoro # G416556082

original price: $10,423.99
10% off
new price: $9,381.99
/ea
Free Shipping & Returns

Key Features

NSF Certifications for Food and Drinking Water
NSF 61
Motor Frame Designation
132F
Motor Ambient Temperature - Maximum
131 Degrees F
Duty Cycle
Continuous
Standards
ACS, AISI 304, CE, cURus, EAC, EN 1.4301, ISO9906:2012 3B, NEMA, NSF61, UBA, UKCA, WRAS
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
99381547
Zoro #
G416556082
UPC #
-
Country of Origin
Mexico

Dimensions

Manufacturer Warranty Length
2 yr
Compatible Discharge Pipe Size
2 in
Compatible Intake Pipe Size
2 in
Inlet Diameter
2 in
Overall Length
13.6 in
Overall Height
14.5 in
Overall Width
21.6 in
Discharge Diameter
2 in

Details

NSF Certifications for Food and Drinking Water
NSF 61
Motor Frame Designation
132F
Motor Ambient Temperature - Maximum
131 Degrees F
Duty Cycle
Continuous
Standards
ACS, AISI 304, CE, cURus, EAC, EN 1.4301, ISO9906:2012 3B, NEMA, NSF61, UBA, UKCA, WRAS
Pump Technology
Centrifugal
Best Efficiency Head
140 ft
Flow Rate @ 50 psi
96 gpm
Flow Rate - Maximum
116 gpm
Phase
Three
Revolutions Per Minute - Maximum
3,480 RPM
Electrical Connection Type
Hardwired
Installation
Floor Standing
Flow Rate @ 20 psi
22.5 gpm
Pump Casing Material
Stainless Steel
Mounting Orientation
Horizontal
Number of Stages
2
Seal Material
EPDM/Silicon Carbide
Motor Enclosure Design
Totally Enclosed Fan Cooled
Motor Design
Three-Phase
Pressure Boost - Maximum
232 psi
Feet of Head - Minimum
140 ft
Inlet Gender
Female
For Media Type
Clear Water
Flow Rate @ 60 psi
117 gpm
Flow Rate @ 30 psi
46.71 gpm
Inlet Standard
NPT
Impeller Material
Stainless Steel
Item
Booster Pump
Includes
Frequency Converter, PI Controller
Flow Rate @ 40 psi
89.3 gpm
Full Load Current
20.0-16.6 A
Best Efficiency Flow
116 gpm
Application
Boosting, Circulating
Motor Ambient Temperature - Minimum
-4 Degrees F
Shut Off Pressure - Maximum
232.06 psi
Feet of Head - Maximum
393 ft
Media Temperature - Maximum
248 Degrees F
Series
CME
Impeller Design
Closed
Discharge Standard
NPT
Frequency
50/60 Hz
Power Source
Hardwired Electric
Nameplate Voltage
200/240V AC
Horsepower
7 1/2 hp
Thermal Protection
No Thermal Protection
Priming
Manual
Media Temperature - Minimum
-4 Degrees F
Discharge Gender
Female

Description

CME25-2 A-S-I-E-AQQE V-A-D-N
