Shop GRUNDFOS

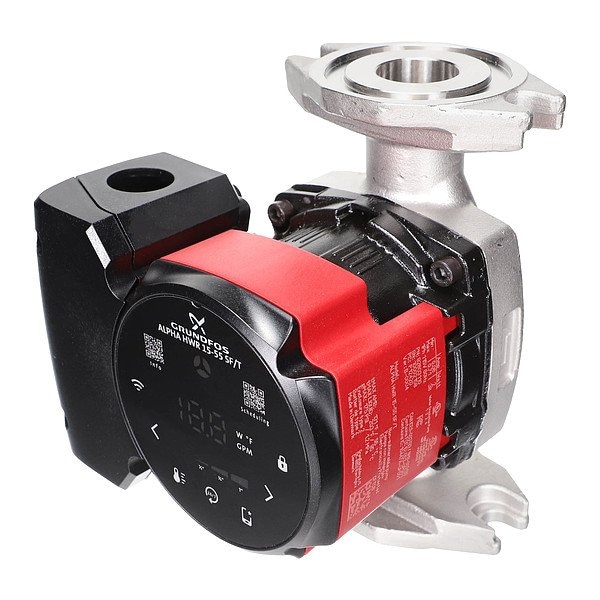

Circulating Pump, Flange, 1/8hp, 115VAC

  • Mfr # 92603110

  • Zoro # G015212990

product price:
$
975.99
/ea
Free Shipping & Returns

Key Features

Phase
Single
Horsepower
1/8 hp
Number of Speeds
Variable
Manufacturer Warranty Length
30 mo
Nameplate Voltage
115V AC
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Details

MFR #
92603110
Zoro #
G015212990
UPC #
-
Country of Origin
Denmark
Item
Circulating Pump
Phase
Single
Horsepower
1/8 hp
Number of Speeds
Variable
Nameplate Voltage
115V AC
Maximum Flow Rate @ 5 Feet of Head
14 gpm
Impeller Material
Composite
Standards
ASTM A351-CF8, cULDWus, cULus, EN 1.4308, FCC
For Low Lead Compliance Level
CE
Mounting Orientation
Horizontal, Vertical
Pump Construction
2-Piece
Pump Technology
Centrifugal
Operating Pressure - Maximum
175 psi
Operating Modes
Constant Pressure
Rotor Type
Wet
Electrical Connection Type
Plug-In
Media Temperature - Maximum
203 Degrees F
For Media Type
Clear Water
Includes Flange
No Flange Included
Connection Standard
Flange
Motor Enclosure Design
Totally Enclosed Non-Ventilated
Includes Volute
Volute Included
Connectivity
Wi-Fi
Number of Flange Mounting Holes
2
Priming
Self-Priming
Pump Casing Material
Stainless Steel
Thermostat Included
No Thermostat Included
Number of Pump Heads
1
Feet of Head - Maximum
10 ft
Full Load Current
0.71 A
Motor Design
Permanent Magnet AC Motor
Includes Timer
Timer Included
Media Temperature - Minimum
35.6 Degrees F
Frequency
60 Hz
Application
Circulating
Includes Union
No Union Included
Flow Rate - Maximum
8 gpm
ANSI Flange Class
Class 150

Description

ALPHA HWR 15-55 SF/T 115V 9H
