  9. Circulating Pump, Flange, 3/8hp, 460VAC
No Product Image Available

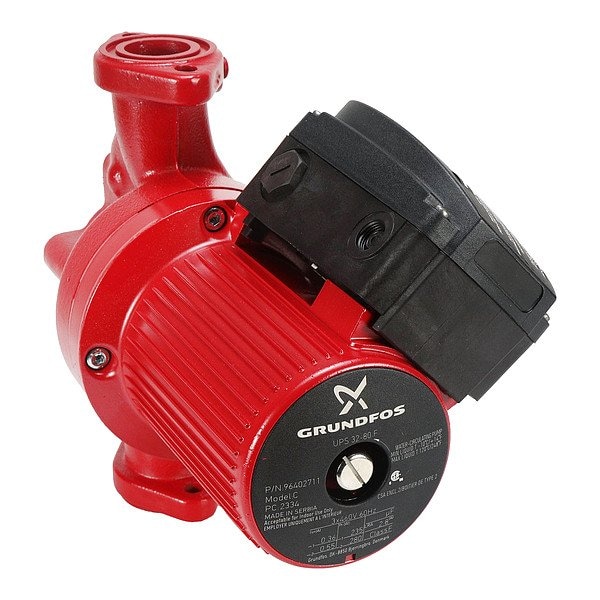

Circulating Pump, Flange, 3/8hp, 460VAC

  • Mfr # 96402711

  • Zoro # G409983352

original price: $2,429.99
8% off
new price: $2,229.00
/ea
Free Shipping & Returns

Key Features

Standards
AISI 304, ASTM 35 B - 40 B, cCSAus, EN 1.4301, EN 1561 EN-GJL-250
Application
Circulating
Face to Face Dimension
11 in
For Media Type
Clear Water
Frequency
60 Hz
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Unlock tax-exempt savings
Add Tax Exemption

Specifications

Product Information

MFR #
96402711
Zoro #
G409983352
UPC #
-
Country of Origin
Serbia

Dimensions

Face to Face Dimension
11 in
Manufacturer Warranty Length
30 mo
Overall Width
12.12 in
Overall Height
11 in

Details

Item
Circulating Pump
Standards
AISI 304, ASTM 35 B - 40 B, cCSAus, EN 1.4301, EN 1561 EN-GJL-250
Application
Circulating
For Media Type
Clear Water
Frequency
60 Hz
Motor Design
Three-Phase
Rotor Type
Wet
Horsepower
3/8 hp
ANSI Flange Class
Class 150
Pump Technology
Centrifugal
Includes Union
No Union Included
Maximum Flow Rate @ 10 Feet of Head
50 gpm
Impeller Material
Stainless Steel
For Low Lead Compliance Level
CE
Maximum Flow Rate @ 5 Feet of Head
59 gpm
Media Temperature - Maximum
248 Degrees F
Media Temperature - Minimum
14 Degrees F
Pump Casing Material
Cast Iron
Operating Pressure - Maximum
145 psi
Phase
Three
Full Load Current
1.1 A
Electrical Connection Type
Hardwired
Connection Standard
Flange
Revolutions Per Minute - Maximum
3,450 RPM
Includes Volute
Volute Included
Number of Flange Mounting Holes
2
Pump Construction
2-Piece
Motor Enclosure Design
Totally Enclosed Non-Ventilated
Includes Timer
No Timer Included
Feet of Head - Maximum
26 ft
Maximum Flow Rate @ 15 Feet of Head
40 gpm
Operating Modes
Constant Pressure
Thermostat Included
No Thermostat Included
Number of Speeds
2
Nameplate Voltage
460V AC
Mounting Orientation
Horizontal, Vertical
Number of Pump Heads
1
Priming
Self-Priming
Includes Flange
No Flange Included

Description

Flange

Restrictions
