  9. Circulating Pump, Flange, 5/8hp, 208-230VAC
No Product Image Available

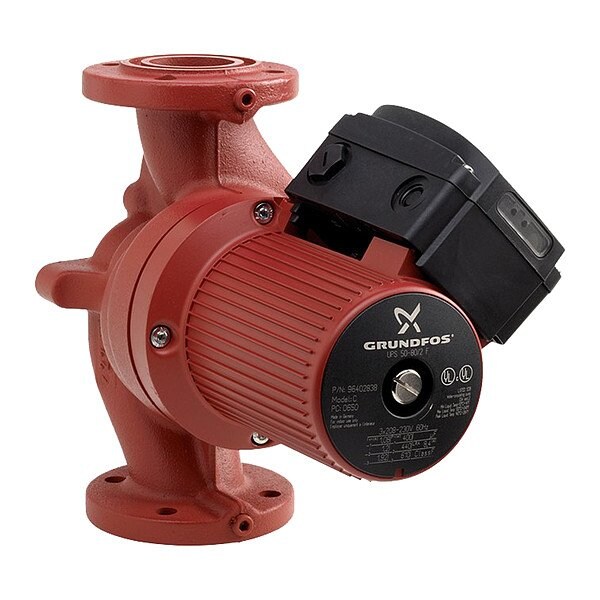

Circulating Pump, Flange, 5/8hp, 208-230VAC

  • Mfr # 96402741

  • Zoro # G115193373

product price: $4,520.99
/ea
Free Shipping & Returns

Key Features

Phase
Three
Horsepower
5/8 hp
Number of Speeds
3
Manufacturer Warranty Length
30 mo
Overall Width
12.16 in
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
96402741
Zoro #
G115193373
UPC #
-
Country of Origin
Serbia

Dimensions

Manufacturer Warranty Length
30 mo
Overall Width
12.16 in
Face to Face Dimension
13 1/2 in
Overall Height
13.5 in

Details

Item
Circulating Pump
Phase
Three
Horsepower
5/8 hp
Number of Speeds
3
Maximum Flow Rate @ 10 Feet of Head
70 gpm
Nameplate Voltage
208-230V AC
Maximum Flow Rate @ 5 Feet of Head
74 gpm
Maximum Flow Rate @ 15 Feet of Head
64 gpm
Maximum Flow Rate @ 30 Feet of Head
47 gpm
Standards
AISI 304, cCSAus, EN 1.4301, IAPMO
Impeller Material
Stainless Steel
Includes Timer
No Timer Included
Application
Circulating
Pump Construction
2-Piece
For Media Type
Clear Water
Media Temperature - Minimum
14 Degrees F
ANSI Flange Class
Class 150
Pump Casing Material
Bronze
Priming
Self-Priming
Number of Pump Heads
1
Includes Flange
No Flange Included
Operating Pressure - Maximum
145 psi
Rotor Type
Wet
Connection Standard
Flange
Media Temperature - Maximum
248 Degrees F
Includes Volute
Volute Included
Mounting Orientation
Horizontal, Vertical
Motor Design
Three-Phase
Pump Technology
Centrifugal
Number of Flange Mounting Holes
2
Revolutions Per Minute - Maximum
3,450 RPM
Full Load Current
1.96 A
Electrical Connection Type
Hardwired
Motor Enclosure Design
Totally Enclosed Non-Ventilated
Includes Union
No Union Included
For Low Lead Compliance Level
CE
Operating Modes
Constant Pressure
Thermostat Included
No Thermostat Included
Frequency
60 Hz
Feet of Head - Maximum
53 ft

Description

Circulating Pump
