  11. Circulating Pump, Flange, 7/8hp, 460VAC
No Product Image Available

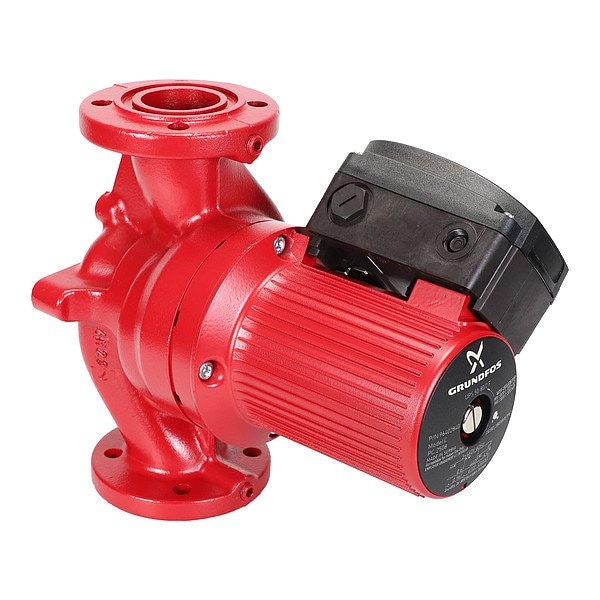

Circulating Pump, Flange, 7/8hp, 460VAC

  • Mfr # 96402840

  • Zoro # G316150809

product price: $2,533.99
/ea
Free Shipping & Returns

Key Features

Number of Speeds
2
Phase
Three
Face to Face Dimension
11 1/2 in
Application
Circulating
Maximum Flow Rate @ 15 Feet of Head
102 gpm
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
96402840
Zoro #
G316150809
UPC #
-
Country of Origin
Serbia

Dimensions

Face to Face Dimension
11 1/2 in
Manufacturer Warranty Length
30 mo
Overall Width
12.86 in
Overall Height
11.5 in

Details

Number of Speeds
2
Item
Circulating Pump
Phase
Three
Application
Circulating
Maximum Flow Rate @ 15 Feet of Head
102 gpm
Nameplate Voltage
460V AC
Horsepower
7/8 hp
Impeller Material
Stainless Steel
Maximum Flow Rate @ 5 Feet of Head
142 gpm
Maximum Flow Rate @ 30 Feet of Head
8 gpm
Maximum Flow Rate @ 10 Feet of Head
122 gpm
Standards
AISI 304, ASTM 35 B - 40 B, cCSAus, EN 1.4301, EN 1561 EN-GJL-250
Motor Design
Three-Phase
Number of Pump Heads
1
Pump Construction
2-Piece
Number of Flange Mounting Holes
4
Motor Enclosure Design
Totally Enclosed Non-Ventilated
Includes Volute
Volute Included
Priming
Self-Priming
Revolutions Per Minute - Maximum
3,450 RPM
Includes Flange
No Flange Included
For Low Lead Compliance Level
CE
Media Temperature - Minimum
14 Degrees F
Pump Casing Material
Cast Iron
Media Temperature - Maximum
248 Degrees F
Operating Modes
Constant Pressure
Operating Pressure - Maximum
145 psi
Includes Timer
No Timer Included
Connection Standard
Flange
Pump Technology
Centrifugal
ANSI Flange Class
Class 150
Feet of Head - Maximum
26 ft
Includes Union
No Union Included
Full Load Current
0.96 A
Rotor Type
Wet
For Media Type
Clear Water
Frequency
60 Hz
Thermostat Included
No Thermostat Included
Mounting Orientation
Horizontal, Vertical
Electrical Connection Type
Hardwired

Description

Rail, Set and Prevent folding
