  9. Hot Water Circulator Pump, 1/30, 115, NPSM Connection
This item is Discontinued.

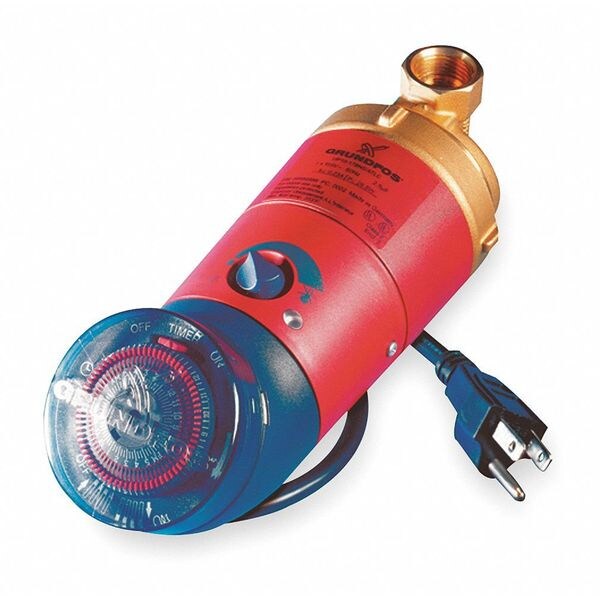

Grundfos Hot Water Circulator Pump, 1/30, 115, NPSM Connection UP10-16BUATLC

Hot Water Circulator Pump, 1/30, 115, NPSM Connection (Discontinued)

  • Mfr # UP10-16BUATLC
  • Zoro # G1607943
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
UP10-16BUATLC
Zoro #
G1607943
UPC #
5700398761976
Country of Origin
United States

Dimensions

Inlet/Outlet Size
1-1/4"
Face to Face Dimension
4-3/8"
Length
8-1/16"
Width
3-1/3"
Manufacturers Warranty Length
2 yr.

Details

HP
1/30
Housing Material
Brass
Connection Style
NPSM
Max. GPM @ Head
2.2 gpm @ 1 ft.
Min. GPM @ Head
0.15 gpm @ 5 ft.
Mechanical Seal
Wet Rotor
Series
UP
Thermal Protection
Auto
Number of Speeds
1
RPM
1500
Best Efficiency GPM @ Head
1 gpm @ 3.4 ft.
Amps
0.23
Drive Type
Direct
Phase
1
Compliance
Certified For Use in Potable Water Applications in CA and VT
Features
Maintenance Free
Loop Configuration
Open
Impeller Material
Stainless Steel
Voltage
115
Flange/Union Included
No
Item
Hot Water Circulator Pump
Includes
Aquastat, Power Cord, 24 hr. Timer
Shaft Material
Stainless Steel
Pump Type
Hot Water Return Line
Shut-Off
5.5 ft.
Max. Temp.
203 Degrees F
Max. Operating Pressure
145 psi

Description

Hot Water Circulator Pump, Face to Face Dimension 4 3/8 in, Number of Speeds 1, Phase 1, Pump Type Hot Water Return Line, Series UP, Amps 0.23
