  9. Pump, 115V, 1/2 HP, 3350 rpm

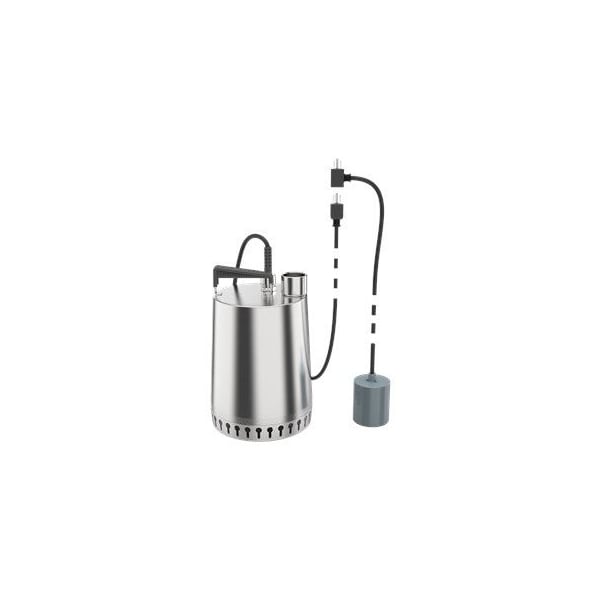

Grundfos Pump, 115V, 1/2 HP, 3350 rpm 96847167 - main

Pump, 115V, 1/2 HP, 3350 rpm

  • Mfr # 96847167

  • Zoro # G7762977

product price: $1,791.99
/ea
Free Shipping & Returns

Key Features

Fits Brand
Grundfos
Manufacturers Warranty Length
2 yr
Standards
CSA
Application
Indoor/Outdoor
Amps
24 A
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
96847167
Zoro #
G7762977
UPC #
-
Country of Origin
Hungary

Dimensions

Manufacturers Warranty Length
2 yr
Cord Length
3 m
Overall Height
12 5/8 in
Min. Sump Pit Dia.
1 1/2 in
Width at Widest Point
8 1/2 in
Body Dia.
8 1/2 in
Body Diameter
8 1/2 in
Depth Pumped - Minimum
4 in
Solids Diameter - Maximum
7/16 in
Sump Pit Diameter - Minimum
21 1/2 in
Discharge Internal Diameter
1 1/2 in
Maximum installation depth
3 M
Size of connection
1 1/2 Inch
Capacitor size
20 µf/400 V
Length of power cable
3 M

Details

Item
Submersible Sump Pump
Fits Brand
Grundfos
Standards
CSA
Application
Indoor/Outdoor
Amps
24 A
Includes
Float Switch
Max. Liquid Temp.
131 Degrees F
Hz
60 Hz
Impeller Material
Stainless Steel
Phase
Single
HP
1/2
RPM
3,350 RPM
Agency Compliance
CSA
Series
UNLIFT AP12
Body Material
Stainless Steel
Duty Cycle
Continuous
Discharge Gender
Female
Rated Voltage
115V AC
Max. Head
23 ft
Base Material
Stainless Steel
Discharge
1 1/2 in NPT
Alarm Included
No
Discharge Standard
NPT
Switch Actuation
Tether Float
Thermal Protection
Yes
Switch Electrical Connection
No Switch Included
Flow Rate @ 10 Ft. of Head
61.66 gpm
Phase - Pumps
Single
Discharge Internal Gender
Female
Liquid Temperature - Maximum
131 Degrees F
Horsepower
1/2 hp
Flow Rate @ 10 ft of Head
65.93 gpm
Motor Housing Material
Stainless Steel
Discharge Internal Standard
NPT
Rotation Speed - Maximum
3,350 RPM
Frequency
60 Hz
Flow Rate @ 5 ft of Head
68.9 gpm
Power Source
Corded Electric
Includes Garden Hose Adapter
No Garden Hose Adapter Included
Feet of Head - Maximum
32.81 ft
For Media Type
Grey Water
Flow Rate - Maximum
61.6 gpm
Current
24 A
Thermal protection
Internal
Impeller
Stainless Steel
liquid temperature
20 °C
Maximum head
10 M
Built-in motor protection
Contact
Enclosure class
Ip68
Range of ambient temperature
0 .. 55 °C
Max. Particle
12 Mm
Pump housing
Stainless Steel
Level switch
A
Cable union
Brass
Power input P1
0.7 Kw
Maximum flow
3.89 L/S
Density
998.2 Kg/M³
Starting current
24 A
Motor type 1-phase
Psc
Rated voltage
1 X 115 V
Rated current
1A
Type of connection
Npt(F)
Type of impeller
Semi Open
Rated power - P2
0.4 Kw
Rated speed
3350 Rpm
Insulation class
F
Liquid temperature range
0 .. 55 °C

Description

Submersible Sump Pump, HP 1/2, Rated Voltage 115V AC, Hz 60 Hz, Phase - Pumps Single, Amps 24 A, Switch Actuation Tether Float, Body Material Stainless Steel, Impeller Material Stainless Steel, Flow Rate @ 10 Ft. of Head 61.66 gpm, Max. Head 23 ft, Min. Sump Pit Dia. 1 1/2 in, Body Dia. 8 1/2 in, Width at Widest Point 8 1/2 in, Overall Height 12 5/8 in, Max. Liquid Temp. 131 Degrees F, Thermal Protection Yes, Discharge 1 1/2 in NPT, RPM 3,350 RPM, Duty Cycle Continuous, Cord Length 3 m
