  9. Well Pump, 1-1/2 HP, 200/240V, 3/4 HP

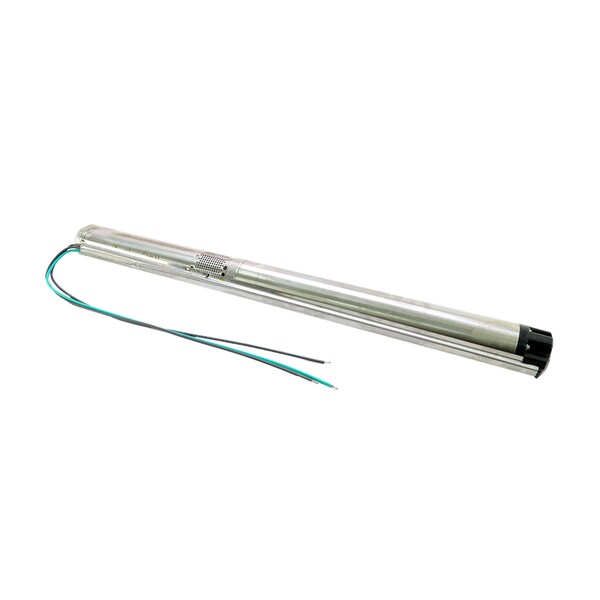

Grundfos Well Pump, 1-1/2 HP, 200/240V, 3/4 HP 96160142 - main

Well Pump, 1-1/2 HP, 200/240V, 3/4 HP

  • Mfr # 96160142

  • Zoro # G7763071

product price: $2,119.00
/ea
Free Shipping & Returns

Key Features

Fits Brand
Grundfos
Phase
Single
Standards
Culus
Hz
50 Hz
Application
Ground Water Extraction
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
96160142
Zoro #
G7763071
UPC #
-
Country of Origin
Mexico

Dimensions

Minimum borehole diameter
76 Mm
Length of cable
1.5 M
Bore Diameter - Minimum
3 in
Manufacturer Warranty Length
2 yr
Discharge Diameter
1 1/4 in
Pump Diameter
2.68 in

Details

Item
Well Pump, 200/240V, 3/4 HP
Fits Brand
Grundfos
Phase
Single
Standards
Culus
Hz
50 Hz
Application
Ground Water Extraction
Impeller Material
Composite
Series
SQ
Liquid temperature range
0 .. 35 °C
Stages
5
Density
998.2 Kg/M³
Rated current
8.4 A
Rated power - P2
1.15 Kw
Pump housing
Stainless Steel
Rated voltage
1 X 200-240 V
Pumped liquid
Water
Power factor
1
Maximum operating pressure
15 Bar
Enclosure class
Ip68
Pump speed
10700 Rpm
Pump outlet
1 1/4inNpt
Insulation class
F
Valve
Pump With Built-In Non-Return Valve
Power input P1
1.55 Kw
liquid temperature
20 °C
Power required
1.55 Kw
Rated speed
10700 Rpm
Thermal protection
Internal
Rated head
88 M
Motor
Stainless Steel
Rated flow
2 M³/H
Motor type
Ms3
Impeller
Composite
Feet of Head - Maximum
288 3/4 ft
Best Efficiency Head
289 ft
Flow Rate @ 100 Ft. @ 40 PSI
15 gpm
Requires Control Panel
Control Panel Required
Horsepower
1 1/2 hp
Media Temperature - Minimum
32 Degrees F
Pump Technology
Centrifugal
Discharge Standard
NPT
Priming
Self-Priming
Discharge Gender
Female
Rated Voltage
200/240V AC
Number of Stages
5
Thermal Protection
Auto
Flow Rate - Maximum
8.81 gpm
Discharge Head Material
Stainless Steel
Net Positive Suction Head Required
30 ft of head
Frequency
60 Hz
Installation
Submersible
Flow Rate @ 150 Ft. @ 40 PSI
11.02 gpm
Full Load Current
8.4 A
Flow Rate @ 150 Ft. @ 50 PSI
10.14 gpm
Number of Speeds
1
For Media Type
Ground Water
Nominal Flow Rate
8.81 gpm
Product Type
Submersible Deep Well Pump
Media Temperature - Maximum
95 Degrees F
Power Source
Corded Electric
Best Efficiency Flow
9 gpm
Flow Rate @ 100 Ft. @ 50 PSI
7.16 gpm
Number of Wires
2

Description

Well Pump, 200/240V, 3/4 HP, Rated Voltage 200/240V AC, Number of Stages 5, Number of Wires 2, Discharge Head Material Stainless Steel, Impeller Material Composite, Nominal Flow Rate 8.81 gpm, Flow Rate @ 100 Ft. @ 40 PSI 15 gpm, Flow Rate @ 100 Ft. @ 50 PSI 7.16 gpm, Flow Rate @ 150 Ft. @ 40 PSI 11.02 gpm, Flow Rate @ 150 Ft. @ 50 PSI 10.14 gpm
