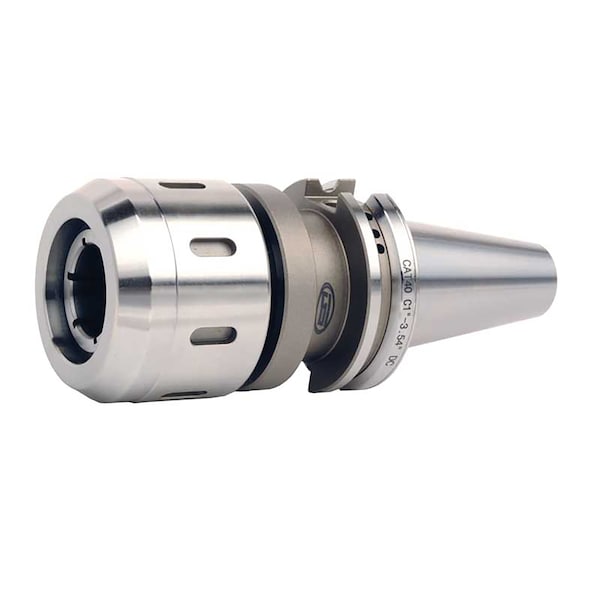

CAT40 1 x 354 Dual Contact Milling Chuck
Mfr # 521255
Zoro # G807185907
product price:Â $489.99
/ea
Free Shipping & Returns
Key Features
Collet Series
GS 1 in
Features
Tightening Torque (Nm)
50-70 Nm
Collet Range
.125-1.00 in
Taper Size
CAT40
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Product Information
- MFR #
- 521255
- Zoro #
- G807185907
- UPC #
- -
- Country of Origin
- Korea, Republic of
Dimensions
- Taper Size
- CAT40
- Seat Depth
- 3.15 in
- Hole Diameter
- 1 in
- Nose Diameter
- 2.41 in
Details
- Collet Series
- GS 1 in
- Features
- Tightening Torque (Nm)
- 50-70 Nm
- Collet Range
- .125-1.00 in
- Shank Type
- Taper Shank
- Projection
- 3.54 in
Description
Taper Size CAT40 Shank Type Taper Shank Hole Diameter Decimal Inch 1 Nose Diameter Decimal Inch 241 Projection Decimal Inch 354 FOR DUAL CONTACT SPINDLES Improves rigidity and reduces vibration allowing for increased feed rates and increased tool life DIN coolant option standard Rough milling or hogging operations Improved tool life over regular end mill holders 360Deg gripping contact Extreme rigidity over taper collets 00002 TIR for maximum tool life and accuracy
