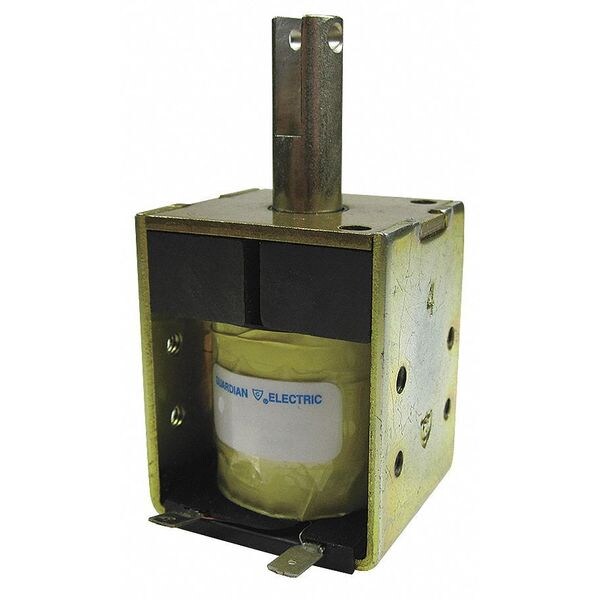

Solenoid, Box Frame, 1/8 - 3/8 in, Continus (Discontinued)
- Mfr # 22L-C-24D
- Zoro # G1955642
Get a 10% off coupon
Free 30-day returns
Return PolicyGet 30 days to pay with Net 30
Apply NowReal support from real people
Contact our U.S. based teamSpecifications
Product Information
MFR #
22L-C-24D
Zoro #
G1955642
UPC #
-
Country of Origin
United States
Dimensions
Depth
3/4 in
Length
1 1/8 in
Body Length
1 1/8 in
Width
3/4 in
Length (Straight Wireway)
1 1/8 in
Details
Item
Solenoid
Solenoid Type
Box Frame, Latching
Stroke Range
1/8 in to 3/8 in
Pull Force Range
1.0 to 7.0 oz
Terminals
Solder Lug
Coil Volts
24V DC
Duty Cycle
Continuous
Coil Resistance
120.0 ohm
Pull @ 1/2 In. Stroke
2.0 oz
Seated Watts
5
Pull @ 1/4 In. Stroke
7.0 oz
Pull @ 3/8 In. Stroke
4.0 oz
Mounting Holes
4-40 UNC-2B (2 Holes)
Pull @ 1/8 In. Stroke
12.0 oz
Seated Amps
200mA
Material of Construction
Steel
Standards
UL, RoHs
From Mounting Holes to Plunger Hole
17/32 in
Coil Insulation
Class 105
Description
Solenoid, Box Frame, Latching, Stroke Range 1/8 in to 3/8 in, Pull Force Range 1.0 to 7.0 oz, Width 3/4 in, Depth 3/4 in, Length 1 1/8 in, Body Length 1 1/8 in, Coil Volts 24V DC, Seated Amps 200mA, Seated Watts 5, Coil Resistance 120.0 ohm, Coil Insulation Class 105, Terminals Solder Lug, Duty Cycle Continuous, Material of Construction Steel, Mounting Holes 4-40 UNC-2B (2 Holes), 17/32 in From Mounting Holes to Plunger Hole, Standards UL, RoHs
