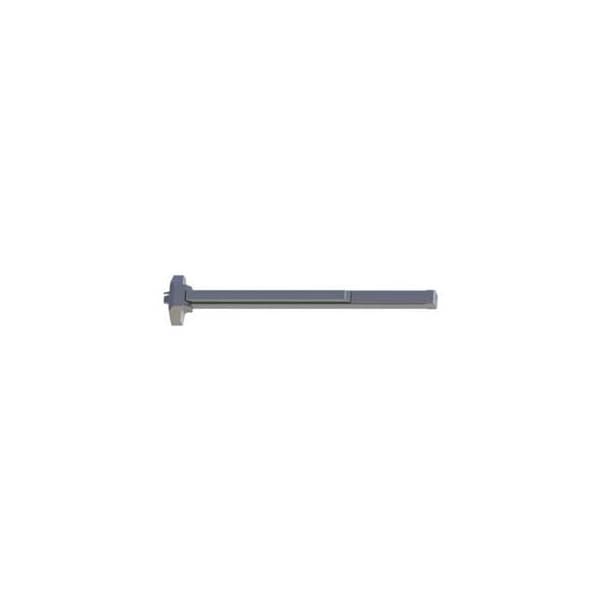

Hager 4700 Series Svr Exit Device

applications: commercial, standard duty certifications: ul/cul listed for up to three hours for "a" label doors, ul10c/ubc 7-2 (1997) positive pressure rated, ulb10 neutral pressure rated, hex dogging feature standard on non-fire labeled doors, complies with an si a117.1 for accessible buildings and facilities trim: outside escutcheon handed trim available head cover: plated zinc chasis: plated steel end caps: plated steel, stainless steel door size: 36" field sizeable to 30", 48" field sizeable to 36" - optional door thickness: 1 3/4" stile width: 4 1/2" - minimum stile width for single door applications, 4" - minimum stile width required for double door applications, 5" - minimum stile width required for double doors with 2" mullion fasteners: wood and machine screws, thru-bolts latchbolt: 3/8" throw, stainless steel with dead latch strikes: stainless steel with plated rollers, surface applied to frame with slotted holes for easy adjustment finishes: u s3, u s32d, alm, dbz functions: cylinder cut-out 08, blank escutcheon 14, night latch 03, dummy 02 notes: trim is non-handed, center line prep is 40". If door prep elevation is lower, a longer rod will need to be ordered.
