  5. Drinking Fountain with Bottle Filler On-Wall Mount, 2 Levels, Silver, Indoor

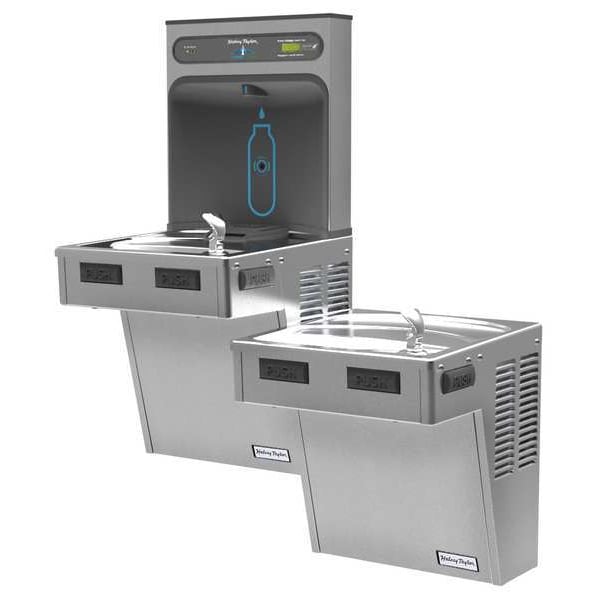

Halsey Taylor Drinking Fountain with Bottle Filler On-Wall Mount, 2 Levels, Silver, Indoor HTHB-HAC8BLSS-NF - main

Drinking Fountain with Bottle Filler On-Wall Mount, 2 Levels, Silver, Indoor

  • Mfr # HTHB-HAC8BLSS-NF

  • Zoro # G9003276

product price:  $2,429.99
/ea
Free Shipping & Returns

Key Features

Indoor / Outdoor
Indoor
Mounting Type
On-Wall
Color
Silver
Voltage
115 V AC
Drain Connection
1 1/4 in
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Unlock tax-exempt savings
Add Tax Exemption

Specifications

Product Information

MFR #
HTHB-HAC8BLSS-NF
Zoro #
G9003276
UPC #
094902042749
Country of Origin
United States

Dimensions

Depth
18 5/8 in
Height
45 5/8 in
Width
36 in
Manufacturers Warranty Length
5 yr on Refrigeration System, 1 yr Electrical Components and Water System
Overall Width
36 1/4 in
Overall Height
46 1/4 in
Mounting Hole Diameter
7/16 in
Drain Outside Diameter
1 1/2 in
Bottle Filler Width
17 7/8 in
Bottle Filler Depth
3 5/8 in
Manufacturer Warranty Length
1 yr Electrical Components, 1 yr Water System, 5 yr Refrigeration System
Overall Depth
18 5/8 in
Inlet Tube Outside Diameter
1/4 in

Details

Indoor / Outdoor
Indoor
Mounting Type
On-Wall
Color
Silver
Item
Drinking Fountain with Bottle Filler
Voltage
115 V AC
Drain Connection
1 1/4 in
Number of Levels
2
Cold Water Capacity
8 gph
Dispenser Operation
Electronic Sensor (Bottle), Front and Side Pushbar (Fountain)
Operation
Push Bar Fountain, Touchless Bottle Filler
Compressor HP
1/5 hp
Vandal Resistant
No
ADA Compliant
Yes
Refrigerant
R134A
Regulator
Maintains Constant Stream Height at Line Pressures of 20 to 105 psi
Includes
Strainer
Inlet
3/8 in OD
Water Temp.
50 Degrees F
Refrigerated / Non-Refrigerated
Refrigerated
Standards
ADA and ICC A117, ASME A112.19.3/CSA B45.4, Buy American Act, CAN/CSA C22.2 No. 120, GreenSpec, NSF/ANSI 372, NSF/ANSI 61, UL 399
Full Load Amps
4 A
Dispenser Design
Wall
Features
Green Counter, Laminar Flow, Mechanically Activated, Real Drain
Maximum Constant Stream Pressure
105 psi
Maximum Cold Water Temperature
50 Degrees F
Compressor Horsepower
1/5 hp
Includes Pet Bowl
No
Number of Bubblers
2
Bi-Level Field Adjustable
Yes
Refrigerant Type
R134A
Minimum Supply Line Pressure
20 psi
Temperature Adjustment
Factory Set but Adjustable
Minimum Constant Stream Pressure
20 psi
Power Consumption
370 W
Station Type
Bi-Level Fountain, Bottle Filling Dispenser
Includes Water Filter
No
Antimicrobial
Yes
Includes Back Panel
No
Housing Finish
Plain
Refrigeration
Refrigerated
Fountain Actuation
Front Pushbar/Side Pushbar
Full Load Current
6 A
Environment
Indoor
Cooling Capacity
8 gph @ 50 Degrees F
Power Source
Electric Corded
Housing Color
Silver
Bottle Dispenser Actuation
Sensor
Number of Mounting Holes
6
Operating Voltage
115V AC

Description

Bi-Level Drinking Fountain with Bottle Filler, Station Type Bi-Level Fountain, Bottle Filling Dispenser, Fountain Actuation Front Pushbar/Side Pushbar, Bottle Dispenser Actuation Sensor, Includes Water Filter Water Filter Not Included, ADA Compliant ADA Compliant, Cooling Capacity 8 gph @ 50 Degrees F, Housing Color Silver, Housing Finish Plain, Overall Height 46 1/4 in, Overall Depth 18 5/8 in, Overall Width 36 1/4 in, Mounting Location Wall Mount
