  5. On-Wall Two-Level Drinking Fountain, 2 Level, 18 5/8 in D, 27 1/4 in H, 36 1/8 in W

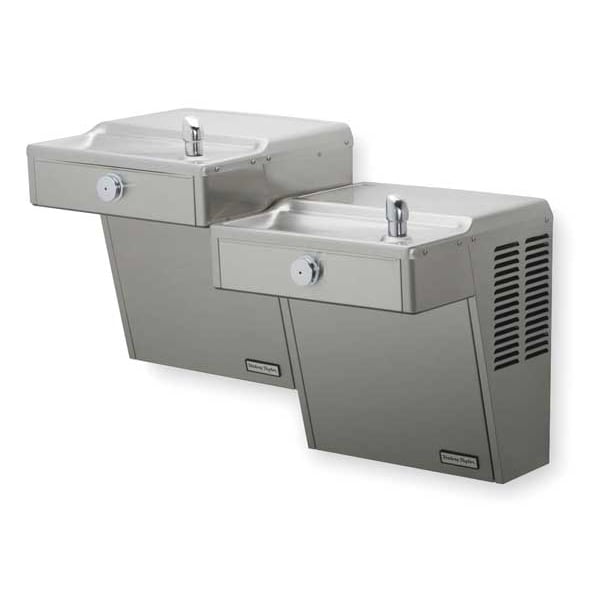

Halsey Taylor On-Wall Two-Level Drinking Fountain, 2 Level, 18 5/8 in D, 27 1/4 in H, 36 1/8 in W 8751080083 - main

On-Wall Two-Level Drinking Fountain, 2 Level, 18 5/8 in D, 27 1/4 in H, 36 1/8 in W

  • Mfr # 8751080083

  • Zoro # G0343393

product price:  $1,823.99
/ea
Free Shipping & Returns

Key Features

Mounting Type
On-Wall
Indoor / Outdoor
Indoor/Outdoor
ADA Compliant
Yes
Number of Levels
2
Voltage
115 V AC
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Unlock tax-exempt savings
Add Tax Exemption

Specifications

Product Information

MFR #
8751080083
Zoro #
G0343393
UPC #
094902395708
Country of Origin
United States

Dimensions

Manufacturers Warranty Length
5 yr on Refrigeration System, 1 yr Electrical Components and Water System
Height
27 1/4 in
Width
36 1/8 in
Depth
18 5/8 in
Overall Width
21 in
Overall Height
38 in
Manufacturer Warranty Length
1 yr Electrical Components, 1 yr Water System, 5 yr Refrigeration System
Overall Depth
21 in
Inlet Tube Outside Diameter
1/4 in
Drain Outside Diameter
1 1/2 in
Mounting Hole Diameter
7/16 in

Details

Mounting Type
On-Wall
Indoor / Outdoor
Indoor/Outdoor
ADA Compliant
Yes
Number of Levels
2
Voltage
115 V AC
Color
Silver
Refrigerant
R134A
Full Load Amps
4 A
Compressor HP
1/5 hp
Operation
Front Push Button
Item
Two-Level Drinking Fountain
Cold Water Capacity
8 gph
Drain Connection
1 1/2 in
Dispenser Operation
Front Push Button
Refrigerated / Non-Refrigerated
Refrigerated
Standards
NSF/ANSI 372, ADA, ASME A112.19.3, CAN/CSA C22.2 No. 120, CSA B45.4, ICC A117.1, NSF/ANSI 61, UL 399
Regulator
In-line Flow, Maintains Constant Stream Height at Line Pressures of 20 to 105 psi
Dispenser Design
Wall
Vandal Resistant
Yes
Inlet
3/8 in OD
Water Temp.
50 Degrees F
Features
Durable, Bubblers Feature Chrome Plated Integral Hood Guard, Hermetically Sealed Refrigeration System, Withstands Abusive Environments and Resists Stains
Number of Bubblers
1
Housing Color
Silver
Refrigeration
Refrigerated
Power Source
Electric Corded
Bubbler Finish
Chrome Plated
Environment
Indoor, Outdoor
Includes Water Filter
No
Number of Mounting Holes
6
Bi-Level Field Adjustable
Yes
Refrigerant Type
R134A
Housing Finish
Plain
Power Consumption
370 W
Maximum Constant Stream Pressure
105 psi
Maximum Cold Water Temperature
50 Degrees F
Minimum Supply Line Pressure
20 psi
Station Type
Bi-Level Fountain
Antimicrobial
No
Temperature Adjustment
Factory Set but Adjustable
Compressor Horsepower
1/5 hp
Cooling Capacity
8 gph @ 50 Degrees F
Operating Voltage
115V AC
Housing Material
Stainless Steel
Vandal Resistant Features
Tamper Resistant Hardware, Vandal Resistant, Vandal Resistant Bubbler
Fountain Actuation
Front Push Button
Includes Pet Bowl
No
Minimum Constant Stream Pressure
20 psi
Full Load Current
4.5 A
Includes Back Panel
No

Description

Bi-Level Drinking Fountain, Station Type Bi-Level Fountain, Fountain Actuation Front Push Button, Bottle Dispenser Actuation Not Applicable, Includes Water Filter Water Filter Not Included, ADA Compliant ADA Compliant, Cooling Capacity 8 gph @ 50 Degrees F, Housing Color Silver, Housing Finish Plain, Overall Height 38 in, Overall Depth 21 in, Overall Width 21 in, Mounting Location Wall Mount, Bi-Level Field Adjustable Bi-Level Field Adjustable, Includes Pet Bowl Pet Bowl Not Included

Restrictions

WARNING: Cancer and Reproductive Harm For more information go to www.P65Warnings.ca.gov
