  5. Single Drinking Fountain On-Wall Single Drinking Fountain, 1 Level, 19 in D, 19 13/16 in H

This item is Discontinued.

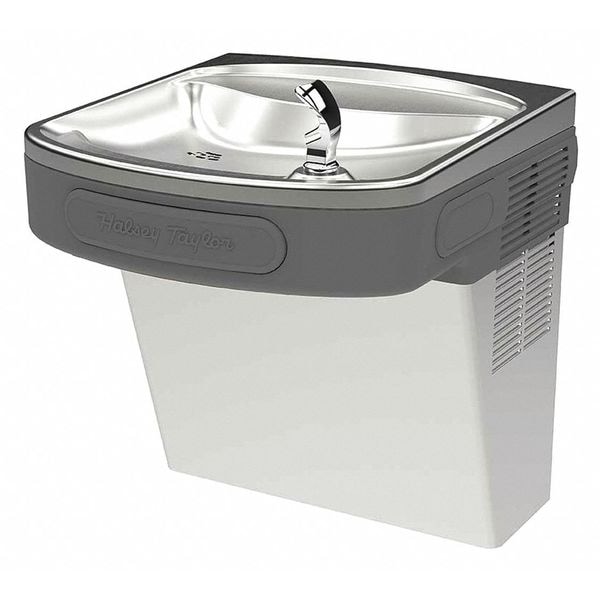

Halsey Taylor Single Drinking Fountain On-Wall Single Drinking Fountain, 1 Level, 19 in D, 19 13/16 in H HTVZDPV-WF

Single Drinking Fountain On-Wall Single Drinking Fountain, 1 Level, 19 in D, 19 13/16 in H (Discontinued)

  • Mfr # HTVZDPV-WF
  • Zoro # G2380010
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
HTVZDPV-WF
Zoro #
G2380010
UPC #
094902043548
Country of Origin
United States

Dimensions

Width
18 3/8 in
Manufacturers Warranty Length
1 yr on Electrical Components and Water System
Height
19 13/16 in
Depth
19 in
Overall Height
19 7/8 in
Overall Depth
19 in
Mounting Hole Diameter
7/16 in
Manufacturer Warranty Length
1 yr Electrical Components, 1 yr Water System
Inlet Tube Outside Diameter
3/8 in
Drain Outside Diameter
1 1/4 in
Overall Width
18 3/8 in

Details

Mounting Type
On-Wall
Indoor / Outdoor
Indoor
ADA Compliant
Yes
Number of Levels
1
Voltage
115 V AC
Color
Gray
Refrigerant
R-134a
Full Load Amps
1 A
Compressor HP
1/5 hp
Operation
Push Bar Fountain
Item
Single Drinking Fountain
Inlet
3/8 in OD
Refrigerated / Non-Refrigerated
Non Refrigerated
Vandal Resistant
No
Compliance
Accessibility, Electrical, Lead, Mechanical, Water Quality
Dispenser Design
Wall
Drain Connection
1 1/4 in
Regulator
Maintains Constant Stream Height at Line Pressures of 20 to 105 psi
Water Temp.
Ambient
Standards
ADA and ICC A117.1, ASME A112.19.3/CSA B45.4, Buy American Act, CAN/CSA C22.2 No. 120, NSF/ANSI 372, NSF/ANSI 42, NSF/ANSI 53, NSF/ANSI 61, UL 399
Includes
Filter
Dispenser Operation
Front Pushbar
Type
Single Drinking Fountain
Antimicrobial
No
Full Load Current
0.1 A
Number of Bubblers
1
Operating Voltage
115V AC
Minimum Constant Stream Pressure
20 psi
Maximum Constant Stream Pressure
105 psi
Environment
Indoor
Includes Back Panel
No
Features
Double Bubbler, Platinum Vinyl Finish
Includes Water Filter
Yes
Bi-Level Field Adjustable
No
Drinking Fountain Operation
Push Bar Fountain
Bubbler Finish
Chrome Plated
Minimum Supply Line Pressure
20 psi
Number of Mounting Holes
3
Refrigeration
Non-Refrigerated
Station Type
Single Fountain
Housing Color
Gray
Power Source
Electric Corded
Water Filter Included
Filtered
Includes Pet Bowl
No
Housing Material Finish
Gray Platinum Vinyl
Brand Name (Brand + SubBrand + Series)
HALSEY TAYLOR HALSEY TAYLOR
Fountain and Bottle Dispenser Operation
Front Pushbar/Side Pushbar
Refrigerated
No
Chilling Capacity
Non-Refrigerated
Fountain and Bottle Filler Type
Single Fountain
Fountain Actuation
Front Pushbar/Side Pushbar
Power Consumption
120 W
Basin Material
Stainless Steel
Compressor Horsepower
1/5 hp
Housing Finish
Platinum Vinyl

Description

Single Drinking Fountain, Station Type Single Fountain, Fountain Actuation Front Pushbar/Side Pushbar, Includes Water Filter Water Filter Included, ADA Compliant ADA Compliant, Cooling Capacity Not Applicable, Housing Color Gray, Housing Finish Platinum Vinyl, Overall Height 19 13/16 in, Overall Depth 19 in, Overall Width 18 3/8 in, Mounting Location Wall Mount, Bi-Level Field Adjustable Not Bi-Level Field Adjustable, Includes Pet Bowl Pet Bowl Not Included, Refrigeration Non-Refrigerated

Restrictions

WARNING: Cancer and Reproductive Harm For more information go to www.P65Warnings.ca.gov
