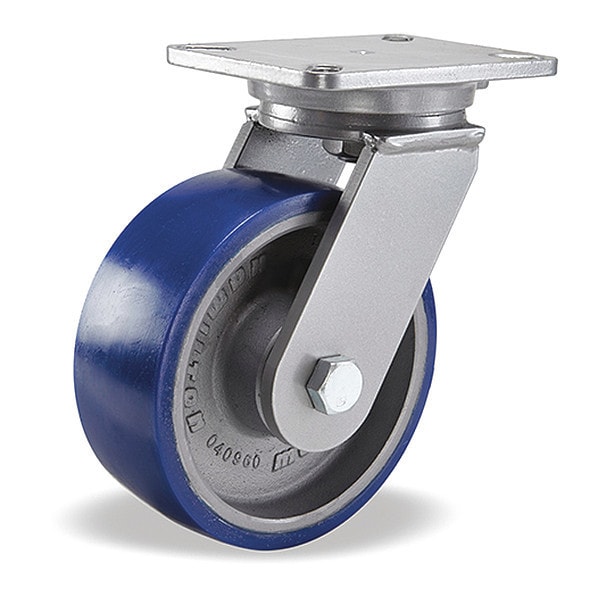

Champion Swivel Caster, 8" x 3" Ergo-Glide XT 1" thick Polyurethane (82A) on Cast Iron Wheel

  • Mfr # S-CH-83EGB

  • Zoro # G1255989


product price:  $294.99
/ea
Free Shipping & Returns

Key Features

Caster Sub-Type
Swivel
Stem Dia.
No Stem
Number of Wheels
1
Caster Stem Type
No Stem/Plate Included
Wheel Width
3
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
S-CH-83EGB
Zoro #
G1255989
UPC #
-
Country of Origin
United States

Dimensions

Stem Dia.
No Stem
Wheel Width
3
Wheel Dia.
8
Overall Height
10-1/2in
Mounting Bolt Dia.
0.5
Mounting Height
10.5
Mounting Plate Size
5 1/4 x 7 1/4

Details

Item
Swivel Ch 8X3 Ergo-Glide Xt
Caster Sub-Type
Swivel
Number of Wheels
1
Caster Stem Type
No Stem/Plate Included
Caster Brake Included
No
Load Rating
2700
Replacement Wheel
W-831-EGB-3/4
Standards
ICWM
Non-Marking
No
Inside Bolt Hole Spacing
3 3/8 x 5 1/4
Core Color
Gray
Frame Finish
Powder Coat
Outside Bolt Hole Spacing
4 1/8 x 6 1/8
Thread Guards
No
Caster Frame Material
Forged Steel
Caster Plate Hole Pattern
A
Series
Champion
Wheel/Tread Hardness Rating
Hard
Number of Mounting Holes
4
Wheel/Tread Color
Blue
Tread Shape
Standard
Wheel/Tread Material
Cast Iron/Polyurethane
Wheel Core Material
Cast iron
Operating Temperature Range
-50 to 200 deg(F)
Load Rating Range
Heavy-Duty

Description

Champion Swivel Caster, 8" x 3" Ergo-Glide XT 1" thick Polyurethane (82A) on Cast Iron Wheel with 3/4" Sealed Precision Ball Bearings
