Shop HAMILTON

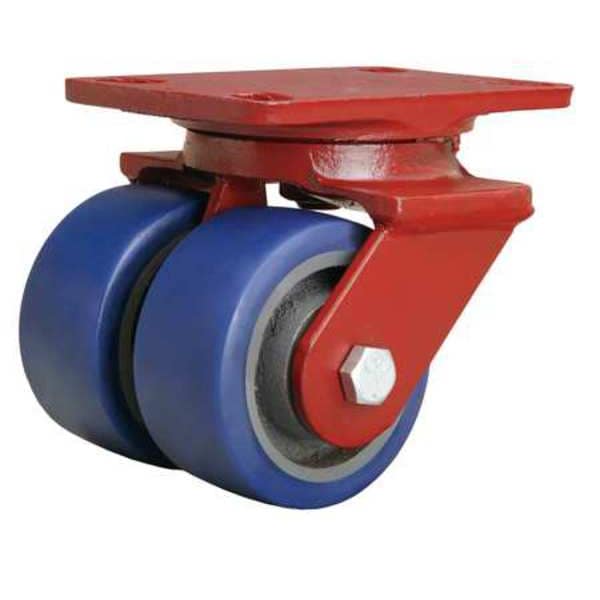

Dual Whl Caster, Polyrthan, 4 in., 1200 lb.

  • Mfr # S-HS2-4SPB
  • Zoro # G2950577
product price:
$
297.99
/ea
Free Shipping & Returns

Key Features

Caster Sub-Type
Swivel
Stem Dia.
No Stem
Load Rating
1200 lb
Caster Stem Type
No Stem/Plate Included
Non-Marking
Yes
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
S-HS2-4SPB
Zoro #
G2950577
UPC #
-
Country of Origin
United States

Dimensions

Stem Dia.
No Stem
Mounting Bolt Dia.
1/2 in
Wheel Dia.
4 in
Overall Height
5-5/8"
Wheel Width
2 in
Mounting Plate Size
4 1/2 in x 6 1/2 in
Mounting Height
5 5/8 in
Mounting Plate Length
6 1/2 in
Overall Wheel Width
4 in
Outside Slot Spacing - Length
5.25 in
Inside Slot Spacing - Width
2.438 in
Mounting Plate Width
4 1/2 in
Outside Slot Spacing - Width
3.375 in
For Axle Dia.
1/2 in
Inside Slot Spacing - Length
4.938 in
Mounting Plate Thickness
5/16 in

Details

Caster Sub-Type
Swivel
Load Rating
1200 lb
Caster Stem Type
No Stem/Plate Included
Non-Marking
Yes
Wheel Color
Blue
Number of Wheels
2
Caster Plate Hole Pattern
A
Outside Bolt Hole Spacing
3-3/8 in x 5-1/4 in
Inside Bolt Hole Spacing
2-7/16 in x 4-15/16 in
Item
Plate Caster
Frame Finish
Enamel
Caster Frame Material
Steel
Caster Brake Included
No
Core Color
Gray
Caster Temp. Range Available
Yes
Caster Brake Type
No Brake
System of Measurement
Inch
Tread Shape
Standard
Wheel/Tread Hardness Rating
Soft
Swivel Raceway Type
Double/Single Ball
Number of Mounting Holes
4
Load Rating Range
1000 to 2999 lb
Includes Thread Guards
No
Wheel Core Material
Iron
Swivel Lock Type
No Lock Included
Swivel Construction
Kingpin
Wheel Bearing Type
Ball
Wheel/Tread Material
Polyurethane
Wheel/Tread Color
Blue
Wheel Type
Flat-Free
Wheel Hardness Rating
82 Shore A
Load Capacity - Maximum
1,200 lb
Mounting Hole Type
Slot
Mounting Plate Shape
Rectangle
Wheel Core Type
Solid
For Surface Type
Concrete
Operating Temperature - Maximum
175 Degrees F
Operating Temperature - Minimum
-50 Degrees F
Operating Temperature Range
-50 Degrees to 175 Degrees F

Description

Swivel, Plate Caster, Load Rating 1200 lb, Swivel Lock Type No Lock Included, Wheel Dia. 4 in, Wheel Width 2 in, Wheel/Tread Material Polyurethane, Wheel Core Material Iron, Non-Marking Yes, Number of Wheels 2, Caster Brake Type No Brake, Tread Shape Standard
