  6. Dual Whl Castr, Polyurethan, 6 in., 2000 lb
Hamilton Dual Whl Castr, Polyurethan, 6 in., 2000 lb S-HS2-6DB-4SL-2FB - main

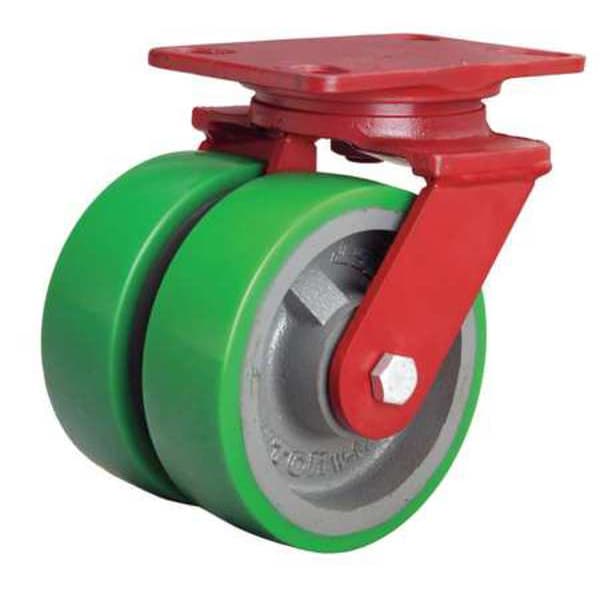

Dual Whl Castr, Polyurethan, 6 in., 2000 lb

  • Mfr # S-HS2-6DB-4SL-2FB

  • Zoro # G2010961

product price:  $428.99
/ea
Free Shipping & Returns

Key Features

Number of Wheels
2
Inside Bolt Hole Spacing
2-7/16 in x 4-15/16 in
Wheel Color
Green
Load Rating
2400 lb
Frame Finish
Enamel
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Unlock tax-exempt savings
Add Tax Exemption

Specifications

Product Information

MFR #
S-HS2-6DB-4SL-2FB
Zoro #
G2010961
UPC #
-
Country of Origin
United States

Dimensions

Stem Dia.
No Stem
Wheel Width
2 in
Mounting Bolt Dia.
1/2 in
Overall Height
7-3/4in
Wheel Dia.
6 in
Mounting Plate Size
4 1/2 in x 6 1/2 in
Mounting Height
7 3/4 in
Outside Slot Spacing - Length
5.25 in
Inside Slot Spacing - Width
2.438 in
Mounting Plate Width
4 1/2 in
Inside Slot Spacing - Length
4.938 in
For Axle Dia.
1/2 in
Mounting Plate Thickness
5/16 in
Mounting Plate Length
6 1/2 in
Overall Wheel Width
4 in
Outside Slot Spacing - Width
3.375 in

Details

Number of Wheels
2
Inside Bolt Hole Spacing
2-7/16 in x 4-15/16 in
Wheel Color
Green
Load Rating
2400 lb
Frame Finish
Enamel
Core Color
Gray
Includes
Four Position Swivel Lock
Caster Brake Type
Total Lock
Item
Plate Caster
Caster Brake Included
Yes
Caster Sub-Type
Swivel
Caster Stem Type
No Stem/Plate Included
Caster Plate Hole Pattern
A
Non-Marking
Yes
Outside Bolt Hole Spacing
3-3/8 in x 5-1/4 in
Caster Frame Material
Steel
Caster Temp. Range Available
Yes
System of Measurement
Inch
Wheel/Tread Hardness Rating
Firm
Number of Mounting Holes
4
Swivel Lock Type
4-Position Directional Lock
Load Rating Range
1000 to 2999 lb
Wheel Bearing Type
Ball
Includes Thread Guards
No
Swivel Raceway Type
Single Ball
Tread Shape
Standard
Wheel Core Material
Iron
Swivel Construction
Kingpin
Wheel/Tread Material
Polyurethane
Wheel/Tread Color
Green
Wheel Type
Flat-Free
Load Capacity - Maximum
2,400 lb
Wheel Hardness Rating
95 Shore A
Mounting Hole Type
Slot
For Surface Type
Concrete
Mounting Plate Shape
Rectangle
Brake Location
Right Side
Wheel Core Type
Solid
Operating Temperature Range
-40 Degrees to 200 Degrees F
Operating Temperature - Minimum
-40 Degrees F
Operating Temperature - Maximum
200 Degrees F

Description

Swivel, Plate Caster, Load Rating 2400 lb, Swivel Lock Type 4-Position Directional Lock, Wheel Dia. 6 in, Wheel Width 2 in, Wheel/Tread Material Polyurethane, Wheel Core Material Iron, Non-Marking Yes, Number of Wheels 2, Caster Brake Type Total Lock, Tread Shape Standard
