Shop HAMILTON

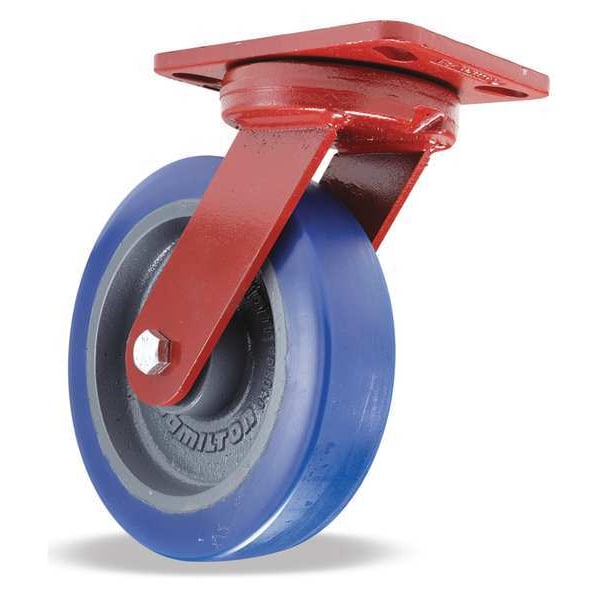

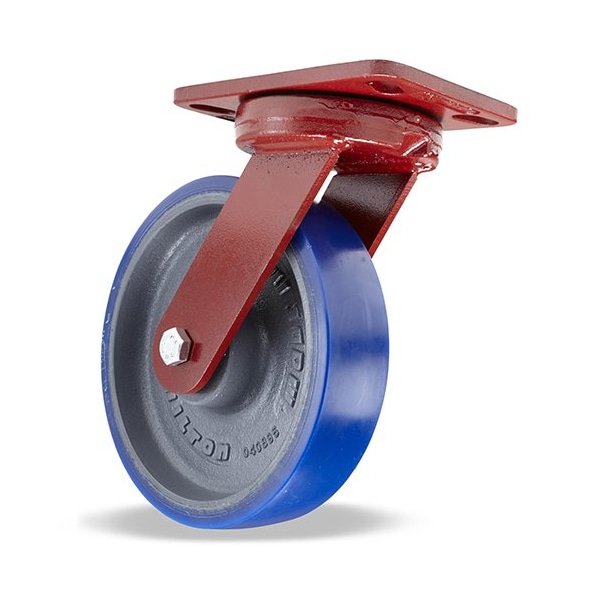

Kgpnls Plt Cstr, Swl, Ply, 8 in, 1200 lb, Blu

  • Mfr # S-ZFHS-8SPB
  • Zoro # G0383306
product price:
$
224.99
/ea
Free Shipping & Returns

Key Features

Caster Frame Material
Steel
Number of Wheels
1
Extended Lead
No
Caster Temp. Range Available
Yes
Outside Bolt Hole Spacing
3-3/8 in x 5-1/4 in
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Details

MFR #
S-ZFHS-8SPB
Zoro #
G0383306
UPC #
-
Country of Origin
United States
Caster Frame Material
Steel
Number of Wheels
1
Extended Lead
No
Caster Temp. Range Available
Yes
Outside Bolt Hole Spacing
3-3/8 in x 5-1/4 in
Caster Sub-Type
Swivel
Inside Bolt Hole Spacing
2-7/16 in x 4-15/16 in
Wheel Color
Blue
Features
Sealed Swivel Bearing
Includes
Spanner Bushing
Core Color
Gray
Item
Plate Caster
Load Rating
1200 lb
Application
Aerospace Tooling, All Purpose Industrial and Commercial Casters, Automotive Assembly Lines, Body Dolly Carts, Chassis Rack Carts, Engine Dollies, Material Carts
Thread Guards
No
Caster Plate Hole Pattern
A
Replacement Wheel
4DB71
Frame Finish
Enamel
Non-Marking
Yes
Standards
ANSI ICWM
Caster Brake Included
No
Caster Brake Type
No Brake
Wheel Bearing Type
Ball
Tread Shape
Standard
Wheel/Tread Hardness Rating
Soft
Wheel Core Material
Polyurethane
Swivel Lock Type
No Lock Included
Includes Thread Guards
No
Swivel Construction
Kingpinless
Load Rating Range
1000 to 2999 lb
Number of Mounting Holes
4
Swivel Raceway Type
Single Ball
Wheel/Tread Material
Polyurethane
Wheel/Tread Color
Blue
Wheel Type
Flat-Free
Load Capacity - Maximum
1,200 lb
Wheel Hardness Rating
82 Shore A
Wheel Core Type
Solid
For Surface Type
Concrete
Mounting Plate Shape
Rectangle
Mounting Hole Type
Slot
Operating Temperature - Minimum
-50 Degrees F
Operating Temperature Range
-50 Degrees to 175 Degrees F
Operating Temperature - Maximum
175 Degrees F

Dimensions

Wheel Width
2 in
Overall Height
9-3/4"
Mounting Bolt Dia.
1/2 in
Wheel Dia.
8 in
Mounting Height
9 3/4 in
Mounting Plate Size
4 1/2 in x 6 1/2 in
Outside Slot Spacing - Width
3.375 in
For Axle Dia.
1/2 in
Inside Slot Spacing - Width
2.438 in
Outside Slot Spacing - Length
5.25 in
Mounting Plate Width
4 1/2 in
Inside Slot Spacing - Length
4.938 in
Overall Wheel Width
2 in
Mounting Plate Thickness
5/16 in
Mounting Plate Length
6 1/2 in
Fits Chest Size
Sealed Swivel Bearing

Description

Swivel, Plate Caster, Load Rating 1200 lb, Swivel Lock Type No Lock Included, Wheel Dia. 8 in, Wheel Width 2 in, Wheel/Tread Material Polyurethane, Wheel Core Material Polyurethane, Non-Marking Yes, Number of Wheels 1, Caster Brake Type No Brake, Tread Shape Standard
