Shop HAMILTON

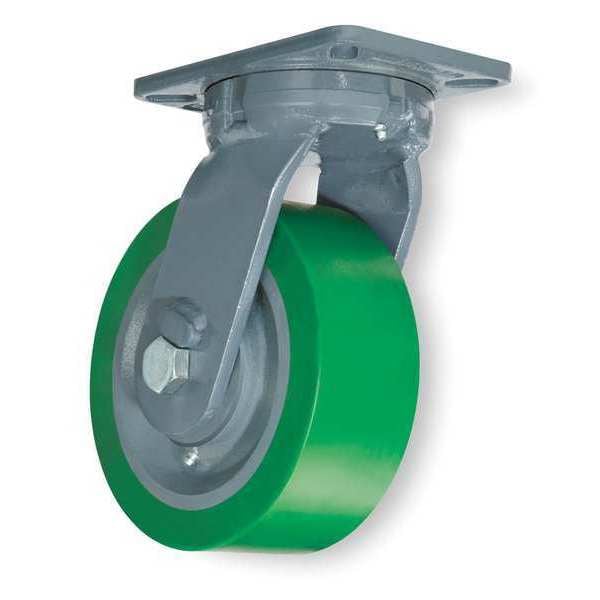

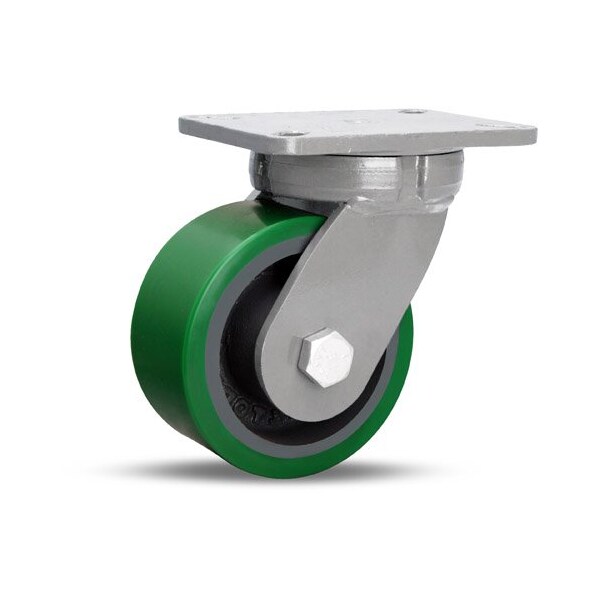

Kingpinless Plate Caster, Swivel, Poly, 6 in, 2200 lb

  • Mfr # S-SEC-63DB
  • Zoro # G0533382
product price:
$
365.99
/ea
Free Shipping & Returns
Zoro's best price: not eligible for any other offers or promotions

Key Features

Wheel Width
3 in
Wheel Color
Green
Replacement Wheel
4DU69
Includes
Spanner Bushing
Caster Plate Hole Pattern
A
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Details

MFR #
S-SEC-63DB
Zoro #
G0533382
UPC #
-
Country of Origin
United States
Wheel Color
Green
Replacement Wheel
4DU69
Includes
Spanner Bushing
Caster Plate Hole Pattern
A
Caster Frame Material
Steel
Inside Bolt Hole Spacing
4-1/8 in x 6-1/8 in
Outside Bolt Hole Spacing
3-3/8 in x 5-1/4 in
Application
Aerospace Tooling, All Purpose Industrial and Commercial Casters, Automotive Assembly Lines, Body Dolly Carts, Chassis Rack Carts, Engine Dollies, Material Carts
Features
Floor Protective
Caster Stem Type
No Stem/Plate Included
Caster Sub-Type
Swivel
Caster Brake Included
No
Extended Lead
No
Thread Guards
No
Non-Marking
Yes
Item
Plate Caster
Load Rating
2900 lb
Frame Finish
Enamel
Core Color
Gray
Standards
ANSI ICWM
Number of Wheels
1
Caster Temp. Range Available
Yes
Caster Brake Type
No Brake
Tread Shape
Standard
Wheel/Tread Hardness Rating
Firm
Includes Thread Guards
No
Swivel Raceway Type
Single Ball
Wheel Core Material
Iron
Load Rating Range
1000 to 2999 lb
Number of Mounting Holes
4
Swivel Lock Type
No Lock Included
Wheel Bearing Type
Ball
Swivel Construction
Kingpinless
Wheel/Tread Material
Polyurethane
Wheel/Tread Color
Green
Wheel Type
Flat-Free
Load Capacity - Maximum
2,900 lb
Wheel Hardness Rating
95 Shore A
Mounting Plate Shape
Rectangle
Mounting Hole Type
Slot
For Surface Type
Concrete
Wheel Core Type
Solid
Operating Temperature - Minimum
-40 Degrees F
Operating Temperature - Maximum
200 Degrees F
Operating Temperature Range
-40 Degrees to 200 Degrees F

Dimensions

Wheel Width
3 in
Wheel Dia.
6 in
Mounting Bolt Dia.
1/2 in
Stem Dia.
No Stem
Overall Height
8"
Mounting Plate Size
5 1/4 in x 7 1/4 in
Mounting Height
8 in
Outside Slot Spacing - Length
6.125 in
For Axle Dia.
3/4 in
Overall Wheel Width
3 in
Outside Slot Spacing - Width
4.125 in
Inside Slot Spacing - Width
3.375 in
Mounting Plate Length
7 1/4 in
Mounting Plate Width
5 1/4 in
Mounting Plate Thickness
3/8 in
Inside Slot Spacing - Length
5.25 in
Fits Chest Size
Floor Protective

Description

Swivel, Plate Caster, Load Rating 2900 lb, Swivel Lock Type No Lock Included, Wheel Dia. 6 in, Wheel Width 3 in, Wheel/Tread Material Polyurethane, Wheel Core Material Iron, Non-Marking Yes, Number of Wheels 1, Caster Brake Type No Brake, Tread Shape Standard
